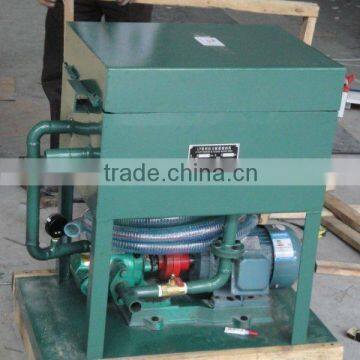

LY Plate Pressure Oil Filtering Machine, oil filter machine system
- FOB CHONGQING
- T/T
You May Like
Product Details
| Condition | New | Type | Press Filter | |
| Structure | Other, Pressure plate | Place of Origin | Chongqing, China | |
| Brand Name | Junneng | Model Number | LY | |
| Power(W) | Depend on the different model | Weight | Depend on the different model | |
| Dimension(L*W*H) | Depend on the different model |
Product Description
Specifications
Oil Filtering Machine1.Cheap,low carbon,environmental protection
2.Easy operation, deft type
LY Plate Pressure Oil Filtering Machine, oil filter machine system
LY series plate pressure oil purifier is mainly used to separate the impurities and water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on
There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure, easy operation, low cost, etc
Technical Parameters:
| Model | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 | |
| Rated Flow(L/min) | 30 | 50 | 100 | 125 | 150 | 200 | 300 | |
| Working pressure | 0~0.5 | |||||||
| (MPa) | ||||||||
| Filter Area(m2) | ≥0.3 | ≥0.39 | ≥1.3 | ≥1.54 | ≥1.89 | ≥2.01 | ≥3.1 | |
| Plate size | 280×280 | 320×320 | ||||||
| (mm) | ||||||||
| Way for compressing | Manually pressed spiral | |||||||
| The number of filter box | 11 | 13 | 17 | 11 | 13 | 19 | 25 | |
| The Number of plate | 12 | 14 | 18 | 12 | 14 | 20 | 26 | |
| Power supply | 380V 50HZ | |||||||
| Total Power | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
| (KW) | ||||||||
| Rate | 1440 | |||||||
| (r/min) | ||||||||
| Filter precision | ≤5 | ≤3 | ||||||
| (μm) | ||||||||
| Filter size | 285×290 | 325×330 | ||||||
| (mm) | ||||||||
| Inlet diameter | φ32 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
| (mm) | ||||||||
| Outlet diameter | φ25 | φ25 | φ38 | φ42 | φ42 | φ50 | φ50 | |
| (mm) | ||||||||
| Dimension | L(mm) | 750 | 800 | 850 | 800 | 850 | 920 | 1000 |
| W(mm) | 530 | 530 | 530 | 600 | 600 | 600 | 600 | |
| H(mm) | 930 | 930 | 930 | 1100 | 1100 | 1100 | 1100 | |
| Weight | 80 | 95 | 130 | 180 | 210 | 250 | 300 | |
| (kg) | ||||||||
Dimension and weight will be changed with changing the technical specification.
