Home > Products > Pressure Oil Purifier > chongqing LY-125 Plate Pressure Oil Filter Machine Series

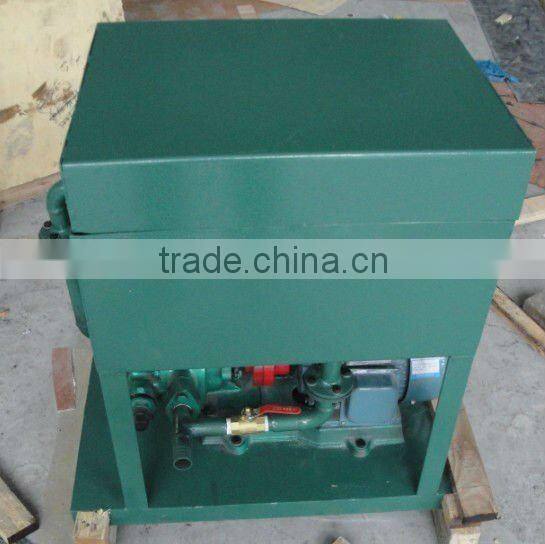

chongqing LY-125 Plate Pressure Oil Filter Machine Series
- Chongqing Port
- T/T
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Jun Neng, JunNeng | |
| Model Number | LY-125, LY-125 | Type | Oil Purifier |
Product Description

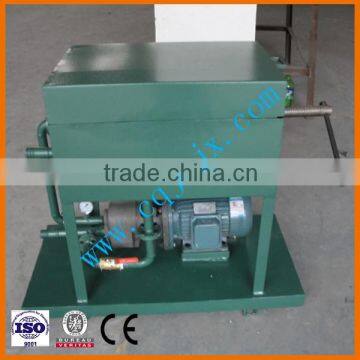

chongqing LY-125 Plate Pressure Oil Filter Machine Series
LY series plate pressure oil purifier is mainly used to separate the impurities and little water from the oil. It is suitable for filtering the cooking oil, transformer oil, used lubricating oil and so on. There is filtering media, such as filtering paper or filtering cloth, installed between the plastic filter board and filter plate that will be fixed to form a single filtering room under the pressure of the packing device. The filtering paper or filtering fuse packed between the filter board and filter plate will play a role of filtering. It's characterized by simple structure, easy operation, low cost, ect.
Technical Parameters
Model | LY-30 | LY-50 | LY-100 | LY-120 | LY-150 | LY-200 | LY-300 | |
Rated FlowL/min | 30 | 50 | 100 | 125 | 150 | 200 | 300 | |
Working pressure MPa | 00.5 | |||||||
Filter Area | ≥0.3 | ≥0.39 | ≥1.3 | ≥1.54 | ≥1.89 | ≥2.01 | ≥3.1 | |
Plate size mm | 280×280 | 320×320 | ||||||
Way for compressing | Manually pressed spiral | |||||||
The number of filter box | 11 | 13 | 17 | 11 | 13 | 19 | 25 | |
The Number of plate | 12 | 14 | 18 | 12 | 14 | 20 | 26 | |
Power supply | 380V 50HZ | |||||||
Total Power (KW) | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
Rate r/min | 1440 | |||||||
Filter precision μm | ≤5 | ≤3 | ||||||
Filter size mm | 285×290 | 325×330 | ||||||
Inlet diameter mm | φ32 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Outlet diameter mm | φ25 | φ25 | φ38 | φ42 | φ42 | φ50 | φ50 | |
Dimension | L(mm) | 750 | 800 | 850 | 800 | 850 | 920 | 1000 |
W(mm) | 530 | 530 | 530 | 600 | 600 | 600 | 600 | |
H(mm) | 930 | 930 | 930 | 1100 | 1100 | 1100 | 1100 | |
Weight kg | 80 | 95 | 130 | 180 | 210 | 250 | 300 | |
Attention:Dimension and weight will be changed with changing the technical specification.
