Pressure Plate Frame Filter For Turbine Oil

FOB Price

USD $940 - $2,100 / Set

1 Set(Min.Order)

Port Chongqing
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Press Filter
Structure	Cartridge	Place of Origin	Chongqing, China
Brand Name	Junneng	Model Number	LY-50
Power(W)	depend on different model	Weight	depend on different model, Depends on the particular case
Dimension(LWH)	depend on different model	Certification	ISO9001
Warranty	3 years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

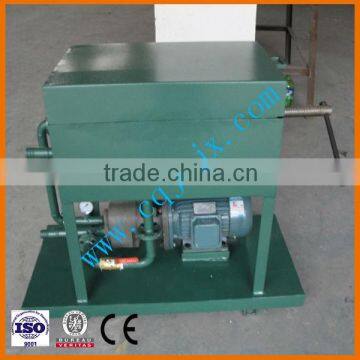

Junneng Pressure Plate Frame Filter For Turbine Oil

1.High filtering precision, easily produce excellent filtering performance.

2.Large Filter area, Strong corrupt capability.

3.Filter paper or filter cloth for the selection of Filter material selection.

4.Filter board making by the engineering plastic plate with Long lifetime.

Interesting about this or similar products? The Oil Purifier products of us in this area sells best. Any doubts? Contacts me, i'll introduce it online, or welcome to Chongqing China to visit my factory. You will never feel disappointed about the Quality at such a low price.

Model	LY-30	LY-50	LY-100	LY-125	LY-150	LY-200	LY-300
Rated Flow(L/min)	30	50	100	125	150	200	300
Working pressure (MPa)	0~0.5
Filter Area	≥0.3	≥0.39	≥1.3	≥1.54	≥1.89	≥2.01	≥3.1
Plate size (mm)	280×280			320×320
Way for compressing	Manually pressed spiral
The number of filter box	11	13	17	11	13	19	25
The Number of plate	12	14	18	12	14	20	26
Power supply	380V 50HZ
Total Power (KW)	0.75	1.1	2.2	2.2	3	4	5.5
Rate (r/min)	1440
Filter precision (μm)	≤5			≤3
Filter size (mm)	285×290			325×330
Inlet diameter (mm)	φ32	φ32	φ42	φ50	φ50	φ60	φ60
Outlet diameter (mm)	φ25	φ25	φ38	φ42	φ42	φ50	φ50
