Home > Products > Mini Speaker Boxes Implanted > Mini Speaker Box Implanted P/N YDT1820N-R001B08 (W18.0*L42.8*17.0) for Multimedia

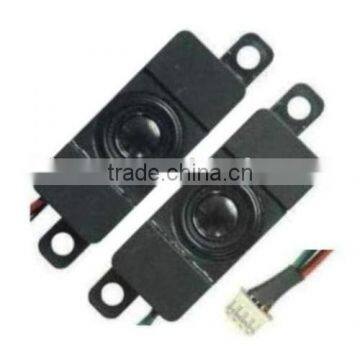

Mini Speaker Box Implanted P/N YDT1820N-R001B08 (W18.0*L42.8*17.0) for Multimedia
Negotiable
/ Pair
5000 Pairs(Min. Order)
- Shenzhen
- T/T
You May Like
-
Mini Speaker Box Implanted P/N YDT2828N-R001B08 (W30.0*L60.0*18.4) for Multimedia
-
Small Computer Stereo Speaker Box Implanted P/N YDT2840N-R001B08 (W32.0*L74.5*26.4)
-
Micro Mylar Speaker Oblong P/N MD2030N-R002B08
-
Micro Speaker Box Implanted P/N YDT34114N-R001B08
-
Micro Speaker Box Implanted P/N YDT1425N-R018B08
-
Micro Speaker P/N YDT2828N-R02F4 (W28.0*L28.0*H10.3) With Concave Membrane for Multimedia
Product Details
| Place of Origin | Guangdong, China | Brand Name | WBN | |
| Model Number | YDT1820N-R001B08 | Type | Speaker |
Product Description
Specifications
Pair of full range speakers with resonant box, leadwires and connector, for laptop, LCD and other small size multimedia devicesSPECIFICATION DATA SHEET | |||
ITEM / DESCRIPTION | SPECIFICATION | REMARKS | |
| 1. Speaker with Resonant Box | Dimension: W18.0*L42.8*17.0 | ||
1.1 Speaker Drives | Mini Cone Speaker P/N YD18A-X8 | ||
1.2 Impedance | 8 Ohms +/-15% | @ 2KHz | |
1.3 Power Rated/Max | 1.5W/2.25W | 3.46V/4.24V | |
1.4 Sound Pressure Level | 80 +/- 3 dB | @ 0.3m/3.46V, Average of values at 1000, 1200, 1500, 2000Hz | |
1.5 Characteristic Sensitivity | 68 +/- 3 dB | Calculating value quivalent to 1m/1W | |
1.6 Frequency Resonant fo | 800Hz +/- 20% | @ 1.0V | |
1.7 Frequency Range | fo~20000Hz | @ 3.46V | |
| 2. Connecting Solution | 2 pcs of box connected with Lead Wires & Connector | ||
2.1 Lead Wires | UL 1007 26AWG, Parallel; Length 260+/-5mm Green & Black; Length 320+/-5mm Red & Black | Optional | |
2.2 Terminal | HSG: ECI 2020-04 or Equiv.; TER: ECI 2012 or Equiv. | Optional | |
| 4. Net Weight | |||
| 5. RoHs Compliant | Yes | ||
| 6. Packing Details | |||
| 7. FEATURES | Slim with high power rated | ||
