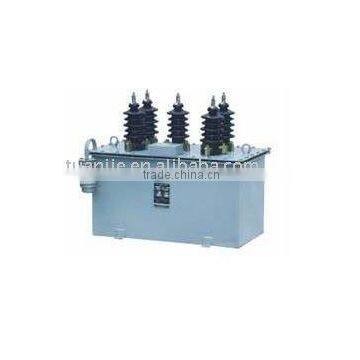

JLSG-6 10 dry- type outdoor combined transformer

FOB Price

Negotiable / Piece

150 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	tuanjie
Model Number	JLSG-6 10

JLSG-6 10 dry- type outdoor combined transformer
Any special requirements can be negotiated with us.

JLSG-6 10 dry- type outdoor combined transformer

Technical data:

Type	Rated transformation ratio(A)	Accuracy class and rated output COSØ=0.8						1s thermal current(ka)	Rated dynamic current(Ka)		Weight(kg)
		0.2S	0.2		0.5S		0.5
JLSG-6 JLSG-10	5-400/5	10	10		10		10	60I 1n		150I 1n
	Rated transformation ratio(V)	Accuracy class and rated output COSØ=0.8						Thermal limiting output(VA)
		0.2		0.5		1
	6000/100	15		30		60		200
	10000/100

Note: any special requirements can be negotiated with us.
