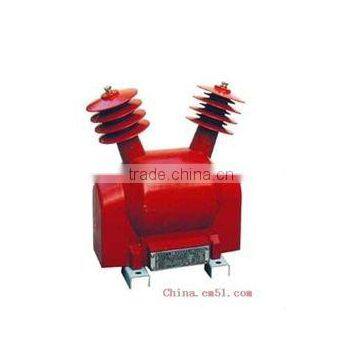

JZW-12 type outdoor voltage transformer

FOB Price

Negotiable / Piece

180 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	tuanjie
Model Number	JZW-12

1)ISO 9001 factory
2)quality guaratee
3)current transformer
4)CE certified

JZW-12 type outdoor voltage transformers basic parameters:

Rated voltage:12 (KV)
Outdoor type
Seat type
Voltage transformer

Model & specifications:

Type	Rated transformation ratio(A)	Accuracy class and rated output COSØ=0.8					Thermal limiting output(VA)	Rated insulation level(KV)
Type	Rated transformation ratio(A)	0.2	0.5	0.2/0.2 0.5/0.5	0.5/0.5	3P 6P	Thermal limiting output(VA)	Rated insulation level(KV)
JZW-12	10000/100	40	80				300	12/42/75
	10000/100/100			25/25	40/40
	(10000/√3)/(100/√3)/(100/3)	20	40			50
	(10000/√3)/(100/√3)/(100/√3)/(100/3)			15/15	40/40	50
