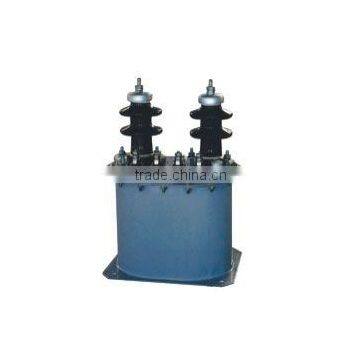

LJW-10 LJWD-10 type current transformers (same LB-10)

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Tuanjie	Model Number	LJW-10, LJWD-10 type current transformers (same LB-10)
Usage	Electronic	Phase	Three
Coil Structure	Toroidal

LJW-10, LJWD-10 type current transformers (same LB-10)
1.oil-immersed.
2.ISO9001 factory
3.quality guarantee

LJW-10, LJWD-10 type current transformers (same LB-10) basic parameters:

Rated voltage:10 (KV)
Differential protection
Outdoor type
Oil-immersed insulated
Current transformer

Model & specifications:

Type	Rated transformation ratio(V)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8				1s thermal current(KA)	Rated dynamic current(KA)
Type	Rated transformation ratio(V)	Accuracy Classes combination	0.2S	0.2	0.5	10p10	1s thermal current(KA)	Rated dynamic current(KA)
LJW-10 LJWD-10 (LB-10)	5/5	0.2S 0.2 0.5 10P10 0.2S/10P10 0.2/10P10 0.5/10P10	10	10	15	20	0.3	0.75
	10/5						0.6	1.5
	15/5						0.9	2.25
	20/5						1.2	3
	30/5						1.8	4.5
	40/5						2.4	6
	50/5						3	7.5
	75/5						4.5	11.25
	100/5						6	15
	150/5						9	22.5
	200/5						12	30
	300/5						18	45
	400/5						24	60

Note: any special requirements can be negotiate with us.
