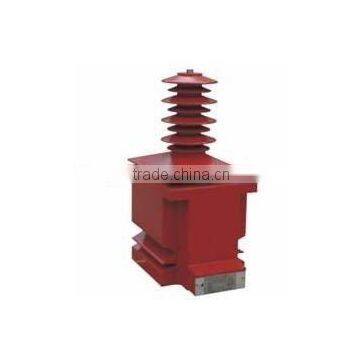

JDZX6-35 type outdoor voltage transformer

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

JDZX6-35 type outdoor voltage transformer
1) CE certificate
2)ISO9001 factory
3)Voltage transformer

JDZX6-35 type outdoor voltage transformer

Technical date

Type	Rated transformation ratio (V)	Accuracy class and rated output COSØ=0.8					Thermal limiting output (VA)	Rated insulation level (kV)
Type	Rated transformation ratio (V)	0.2	0.5	0.2/0.2 0.2/0.5	0.5/0.5	3p 6p	Thermal limiting output (VA)	Rated insulation level (kV)
JDZX6-35	35000/√3 100/√3 100/3	40	80			100	600	40.5/95/200
JDZX6-35	35000/√3 100/√3 100/3			30/60	40/40	100	300	40.5/95/200

Note : any special requirements can be negotiate with us.
