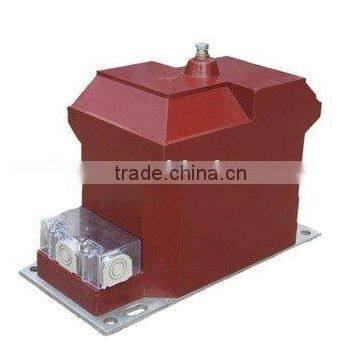

JDZX10-10 type voltage transformer(same REL 10)

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Tuanjie
Model Number	JDZX10-10 type voltage transformerS (same REL 10)	Usage	Potential
Phase	Single	Coil Structure	Toroidal
Coil Number	Other

Rated voltage:10 (kV)
Design NO:10
With residual voltage winding
Cast-resin insulated
Single-phase

JDZX10-10 type voltage transformerS (same REL 10) basic parameters:

Rated voltage:10 (kV)
Design NO:10
With residual voltage winding
Cast-resin insulated
Single-phase
Voltage transformer

Model & specifications:

Type	Rated transformation ratio(V)	Accuracy class and rated output COSØ=0.8					Thermal limiting output(VA)	Rated insulation level(kV)
Type	Rated transformation ratio(V)	0.2	0.5	1	3P	3P 6P	Thermal limiting output(VA)	Rated insulation level(kV)
JDZX10-10 (REL 10)	(6000/√3)/(100/√3)/(100/3)	15	30	60	50	50	200	7.2/32/60
JDZX10-10 (REL 10)	(10000/√3)/(100/√3)/(100/3)	15	30	60	50	50	200	12/42/75

Note :any special requirements can be negotiate with us,including demensions of overall drawing.
