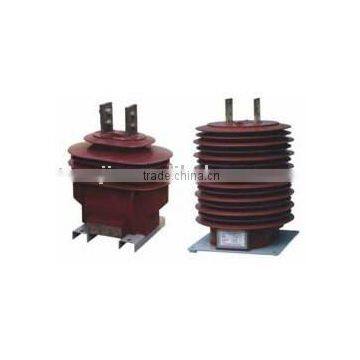

LZW-12 35 type outdoor current transformer

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Tuanjie
Model Number	LZW-12,35 type outdoor current transformer	Usage	Potential
Phase	Three	Coil Structure	Toroidal
Coil Number	Other

LZW-12,35 type outdoor current transformer
1.cast resin insulated.
2.ISO9001 factory
3.quality guarantee

LZW-12,35 type outdoor current transformers basic parameters:

Rated voltage:12,35 (KV)
Outdoor type
Seat type
Current transformer

Model & specifications:

Type	Rated transformation ratio(A)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8				1s thermal current(kA)	Rated dynamic current(kA)
			0.2S	0.2	0.5	10P15
LZW-12	50/5	0.2/10P15 0.2/10P15 0.5/10P15	10	10	10	15	25	63
	75/5
	100/5
	150/5						50	125
	200/5
	300/5						60	150
	400/5
	600/5
	800/5
LZW-35	20/5	0.2/5P15 0.2/5P15 0.5/5P15	10	20	50	(5P15) 50	2.5	6.25
	30/5
	40/5						7.5	18.75
	50/5
	75/5						15	37.5
	100/5
	150-300/5						45	112.5
	400-1000/5						120	300
	1250-2000/5						190	475

Note: any special requirements can be negotiate with us,including the demensions of overall drawing.
