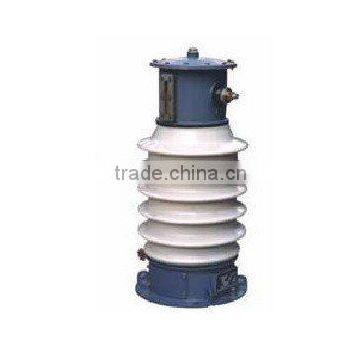

LCWD1-35 type current transformer
1)good quality and best price
2)CE certificate
3)ISO9001 factory

LCWD1-35 type current transformer

- Technical data:

Type	Rated transformation ratio(V)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8				1s thermal current(KA)	Rated dynamic current(KA)
Type	Rated transformation ratio(V)	Accuracy Classes combination	0.2S	0.2	0.5	10P20	1s thermal current(KA)	Rated dynamic current(KA)
LCWD1-35	15/5	0.2/10P20 0.2/10P20 0.5/10P20	20	20	50	50	1.1	2.9
	20/5						1.5	3.8
	30/5						2.3	5.7
	40/5						3	7.6
	50/5						3.8	9.6
	75/5						5.6	14.3
	100/5						7.5	19.1
	150/5						11.3	28.7
	200/5						15	38.2
	300/5						22.5	57.3
	400/5						30	76.4
	500/5						45	115
	600/5
	800/5
	1000/5
	1200/5
	1500/5

Note: any special requirements can be negotiate with us.
