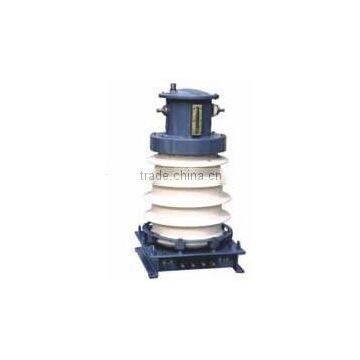

LCW-35 LCWD-35 type current transformer
1)CE certified
2)Outdoor type
3)ISO 9001 factory
4)Quality guarantee

LCW-35, LCWD-35 type current transformer

- Technical data:

Type	Rated transformation ratio(V)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8					1s thermal current(KA)	Rated dynamic current(KA)
Type	Rated transformation ratio(V)	Accuracy Classes combination	0.2S	0.2	0.5	3	10P	1s thermal current(KA)	Rated dynamic current(KA)
LCW-35	15/5	0.2S/3 0.2/3 0.5/3	15	30	50	50	50	0.98	1.5
	20/5							1.3	2
	30/5							2	3
	40/5							2.6	4
	50/5							3.25	5
	75/5							4.9	7.5
	100/5							6.5	10
	150/5							9.8	15
	200/5							13	20
	300/5							20	30
	400/5							26	40
	600/5							39	60
	750/5							48.8	75
	1000/5							65	100
LCWD-35	15/5	0.2S/10P35 0.2/10P35 0.5/10P35	15	20	30	30	20	0.98	2.35
	20/5							1.3	3
	30/5							2	4.5
	40/5							2.6	6
	50/5							3.25	7.5
	75/5							4.9	11.25
	100/5							6.5	15
	150/5							9.8	22.5
								13	30
								20	45
								26	60
								39	90
								48.6	112.5
				20	30		20	65	100

Note: any special requirements can be negotiate with us.
