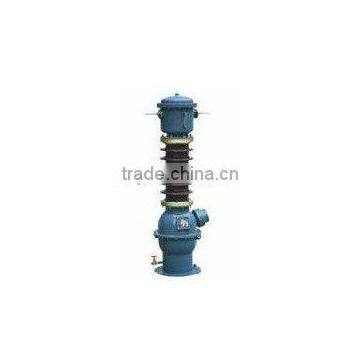

LB6-35 type current transformer

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LB6-35 type current transformer
good quality and best price

LB6-35 type current transformer

- Technical data:

Type	Rated transformation ratio(V)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8					1s thermal current(KA)	Rated dynamic current(KA)
Type	Rated transformation ratio(V)	Accuracy Classes combination	0.2					1s thermal current(KA)	Rated dynamic current(KA)
LB6--35	5/5	0.2S/10P20/10P20 0.2/10P20/10P20 0.5/10P20/10P20	15	30	40	40	30	0.5	1.28
	10/5							1	2.53
	15/5							1.5	3.83
	20/5							2	5.1
	30/5							3	7.65
	40/5							4	10.2
	50/5							5	12.75
	75/5							7.5	19.13
	100/5							10	25.5
	150/5							15	38.25
	200/5							20	51
	300/5							30	76.5
	400-2000/5							40	102

Note: any special requirements can be negotiate with us.
