LA-10 LA-10Q Type current transformer

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	tuanjie
Model Number	LA-10 LA-10Q

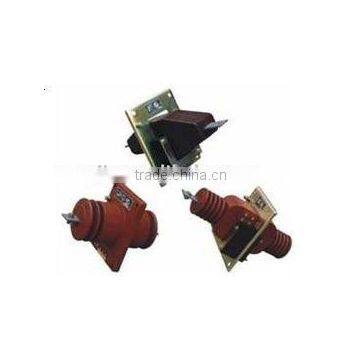

LA-10 LA-10Q Type current transformer
1)ISO 9001 factory
2)quality guaratee
3)current transformer
4)CE certified

LA-10 LA-10Q Type current transformer

Technical data:

Type	Rated transformation ratio(A)	Accuracy Classes combination	Accuracy class and rated output COSØ=0.8				1s thermal current(kA)	Rated dynamic current(kA)
Type	Rated transformation ratio(A)	Accuracy Classes combination	0.2S	0.2	0.5	10P10	1s thermal current(kA)	Rated dynamic current(kA)
LA-10 LA-10Q	5/5	0.2S/10P10 0.2/10P10 0.5/10P10 1/10P10	10	10	10	15	0.5	0.8
	10/5						0.9	1.6
	15/5						1.4	2.4
	20/5						1.8	3.2
	30/5						2.7	4.8
	40/5						3.6	6.4
	50/5						4.5	8
	75/5						6.8	12
	100/5						9	16
	150/5						13.5	24
	200/5						18	32
	300/5						22.5	40.5
	400/5						30	54
	500/5						30	54
	600/5						30	54
	800/5						40	72
	1000						50	90

Note: any special requirements can be negotiate with us
