JDJJ2-11kv Oil-immersed transformer

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

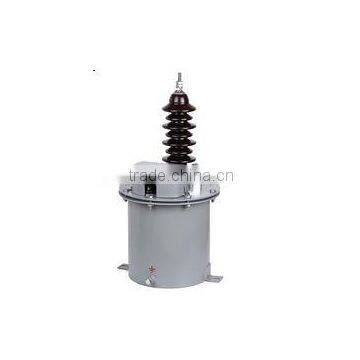

JDJJ2-11kv Oil-immersed transformer
1)CE certified
2)Outdoor type
3)ISO 9001 factory
4)Quality guarantee

1.Summary

This kind of voltage transformer is suitable be used in AC 50Hz, 12kV ,neutralpoint solid

ground directly with singlephase three winding, and oil immersed in outdoors for voltage,

electrical energy and power measurement as well as the usage in electrical relay protection .

This kind of voltage transformer the neutral point form primary winding system earthing .

line termination completed insulation , ground terminal incompleteness insulation .

3.Technical Data:

Type	Voltage rating			Rated capacity of secondary windingVACOS=0.8			End capacity of secondary winding VA	Link group of winding label
	Primary winding	Secondary winding	Residal voltage winding	0.5	1	3
JDJJ-11	11000/√ 3	110/√ 3	110/√ 3	15	50	500	600	1/1/1-12-12
JDJJ1-11
JDJJ2-11
