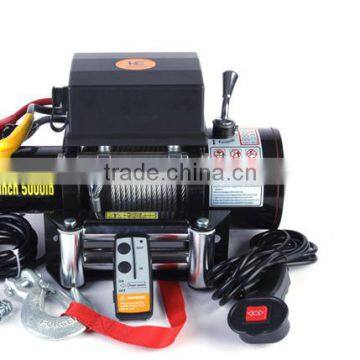

new model 4X4 WINCHES

SC5.0X 12V or 24V

Heavy duty series wound motor, delivers high torque force.

Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.

Bilateral roller brake, load-hold in two directions, offers more installation options.

Sliding ring gear clutch system with guide teeth allows engagement and disengagement smoother.

Precision machining transmission shaft lowers noises when winching.

Sealed winch body, well working in water.

Every winch is tested on pulling capacity and function.

Specification

Rated line pull 5000lb (2268kg) single line

Motor 3.8hp/2.8kw,series wound 12V

Control Remote switch, 12ft (3.7m) lead

Gear train 3 stage planetary

Gear reduction ratio 191:1

Clutch Sliding ring gear

Braking Automatic load-holding brake

Drum size Ø2.5″*L5.37″ (Ø63.5mm*L136.5mm)

Cable Ø6.4mm*20m

Fairlead 4-way roller fairlead

Wireless Remote control Optional

Battery recommended 650 CCA minimum for winching

Battery leads 2 gauge, 72" (1.83m)

Finishing Black, dark grey coating

Overall dimension (L*W*H) 427*160*214mm

Mounting bolt pattern 166.5*114.3mm

Package Honeycomb carton 49.5x20.5x40cm

Foam carton 50x33.5x24.5cm

Shipping in 15days

Located in Changtan Industrial zone, Yinzhou District, Ningbo Hipower Precision Technologies Co.,Ltd. is a joint

venture established in 2000. Our company covers an area over 20,000 square meters and integrates precision

machining, tempered glass manufacturing and electric winches.

We have professional R&D teams and full sets of equipments like CNC lathes, machining centers, testing

equipments to ensure strong technical force and advanced processing techniques. We provide different kinds of

OEM and ODM products. With 12 years of diligent work and good services, we have gained a large number of

customers around the world.

We are dedicating to provide customers good quality products and services. Welcome you to contact us for

future cooperation!
