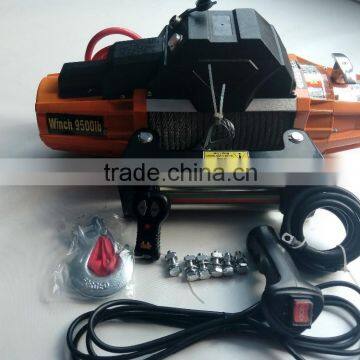

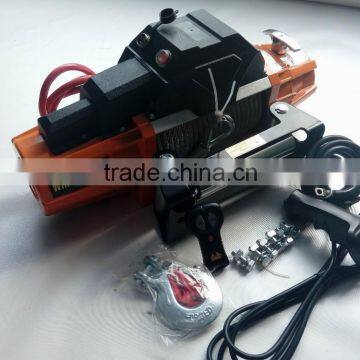

9500lb Winch for 4x4
- Ningbo/Shanghai
- T/T
You May Like
-
12000lb ELECTRIC WINCH for TRUCK 12V TRAILER RECOVERY WINCH
-
Grande 4WD Winch 13000lb 6 Ton
-
Fast Line Speed Electric Winch 12000lb off Roading Winches 191:1
-
off Road Self Recovery Electric Winch 12000lb With Rope
-
off Road Shop Winches / Truck Winch / 4x4 Winch 12000lb
-
Auto Parts 12V 24V Car Winch for Jeep Wrangler, Land Rover 4 Wheeler , Automotive Winches
Product Details
| Brand Name | HC Winches | Model Number | SC9.5EX | |
| Power Source | Electric | Application | Auto | |
| Capacity | 9500LB(4309kg) single line |
Product Description
1. Specification:
4x4 winch 9500lb
Rated line pull | 9500lb(4309kg)single line |
Motor | 6.0hp/4.5kw, series wound |
Control | remote switch, 12ft(3.7m) lead |
Gear train | 3 stage planetary |
Gear reduciton ratio | 191:1 |
Clutch | keyway cam clutch |
Braking | automatic load-holding brake |
Drum size | D63.5mm*L136.5mm |
Cable | Ø8.3mm*28m |
Fairlead | 4-way roller fairlead |
Wirelesss Remote control | optional |
Battery leads | 2 gauge,72"(1.83m) |
Finishing | black, dark grey coating |
Overall dimension | 525*160*214mm |
Mounting bolt pattern | 254*114.3mm |
N.W/G.W. | 37/39KG |
Packing | foam package, 1pc/ctn |
Battery recommended | 650CCA minimum for winching |
2. Pull, Speed, Amps data:
Line Pull
| Lbs | NO LOAD | 2000 | 4000 | 6000 | 8000 | 9500 |
kgs | 909 | 1814 | 2721 | 3629 | 4082 | ||
Line Speed
| ft/min | 31 | 17.91 | 12.30 | 10.33 | 8.04 | 6.59 |
m/min | 9.45 | 5.46 | 3.75 | 3.15 | 2.45 | 2.01 | |
Motor Current | amps | 60 | 113 | 184 | 228 | 296 | 350 |
3. Line pull and cable capacity per layer
Layer of cable | 1 | 2 | 3 | 4 | 5 | |
Rated line pull per layer | Lbs | 9500 | 7120 | 5860 | 5020 | 4200 |
Kgs | 4309 | 3230 | 2658 | 2277 | 1905 | |
Cumulative Cable capacity | Ft | 16.08 | 33.46 | 52.82 | 77.10 | 91.86 |
M | 4.9 | 10.2 | 16.1 | 23.5 | 28 | |
1. Specification:
4x4 winch 9500lb
Rated line pull | 9500lb(4309kg)single line |
Motor | 6.0hp/4.5kw, series wound |
Control | remote switch, 12ft(3.7m) lead |
Gear train | 3 stage planetary |
Gear reduciton ratio | 191:1 |
Clutch | keyway cam clutch |
Braking | automatic load-holding brake |
Drum size | D63.5mm*L136.5mm |
Cable | Ø8.3mm*28m |
Fairlead | 4-way roller fairlead |
Wirelesss Remote control | optional |
Battery leads | 2 gauge,72"(1.83m) |
Finishing | black, dark grey coating |
Overall dimension | 525*160*214mm |
Mounting bolt pattern | 254*114.3mm |
N.W/G.W. | 37/39KG |
Packing | foam package, 1pc/ctn |
Battery recommended | 650CCA minimum for winching |
2. Pull, Speed, Amps data:
Line Pull
| Lbs | NO LOAD | 2000 | 4000 | 6000 | 8000 | 9500 |
kgs | 909 | 1814 | 2721 | 3629 | 4082 | ||
Line Speed
| ft/min | 31 | 17.91 | 12.30 | 10.33 | 8.04 | 6.59 |
m/min | 9.45 | 5.46 | 3.75 | 3.15 | 2.45 | 2.01 | |
Motor Current | amps | 60 | 113 | 184 | 228 | 296 | 350 |
3. Line pull and cable capacity per layer
Layer of cable | 1 | 2 | 3 | 4 | 5 | |
Rated line pull per layer | Lbs | 9500 | 7120 | 5860 | 5020 | 4200 |
Kgs | 4309 | 3230 | 2658 | 2277 | 1905 | |
Cumulative Cable capacity | Ft | 16.08 | 33.46 | 52.82 | 77.10 | 91.86 |
M | 4.9 | 10.2 | 16.1 | 23.5 | 28 | |
Foam and carton for 1 piece, 20, or 30 in one pallet.
We are a professional electric winch manufacture in Ningbo, China. Our winch line includes: ATV winch 2000lb-4000lb, electric 4x4 winch 5000LB-17000lb and winch accessories. We have strict quality control, insisting tests on pulling and function for every single winch before delivery. We have experienced engineers and sales for your OEM requests.
Over the past 3 yers, we have exported to America, Austria, Canada, Kenya, Russian, Uruguay and other countries world wide. Feedbacks have been quite good. Pls contact us for further questions.
1. How to choose a winch? Winch Capacity.
When buying a winch, the first important factor you need to consider is the winch line pull rating. It is a combination of the mechanical capacity of the winch and the tensile strength of the line on the drum. Usually rated capacity is based on the first layer of winch cable (the one closest to the drum). Typically, there are three or four layers and that first one has the “lowest” gear ratio and the most pull.
The rule to choose a winch is to take your car's GW (that’s Gross Vehicle Weight, not curb weight) and multiply it by 1.5.
Usually like 12000Lb can be used for most jeeps, jeep wrangler, etc. We have 5000Lb-17000LB winch for your choice.
