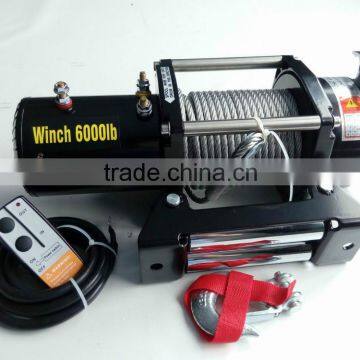

new 6000IBS 4X4 off load winch for jeep

SC6.0X 12V or 24V

Heavy duty series wound motor, delivers high torque force.

Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.

Bilateral roller brake, load-hold in two directions, offers more installation options.

Sliding ring gear clutch system with guide teeth allows engagement and disengagement smoother.

Precision machining transmission shaft lowers noises when winching.

Sealed winch body, well working in water.

Every winch is tested on pulling capacity and function.

Specification

Rated line pull                                          6000lb (3310kg) single line

Motor                                                         4.5hp/3.3kw,series wound 12V

Control                                                     Remote switch,12ft (3.7m) lead

Remote Control                                     Included

Gear train                                               3 stage planetary

Gear reduction ratio                             191:1

Clutch                                                      Sliding ring gear

Braking                                                   Automatic load-holding brake

Drum size                                              Ø2.5″*L5.37″ (Ø63.5mm*L136.5mm)

Cable                                                     Ø7.2mm*20m

Fairlead                                                4-way roller fairlead

Wireless Remote control                   Optional

Battery                                                   recommended 650 CCA minimum for winching

Battery leads                                        2 gauge, 72" (1.83m)

Finishing                                              Black, dark grey coating

Overall dimension                              (L*W*H) 427*160*214mm

Mounting bolt pattern                        166.5*114.3mm

foam packing

1PCS/CTN

15days after paymen

Shipped in 15 days after payment
