MC-750V Opticla Video Microscope With Probe

Specifications

Overview

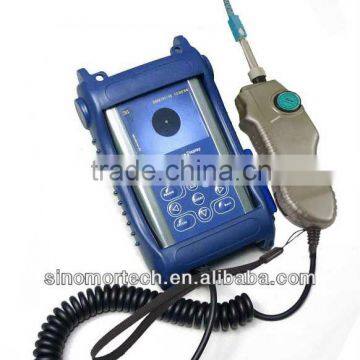

MC-750V optical video microscope is used to inspect end-face of fibers and check the optic connectivity.

It magnifies fibers of 125um diameter 500 times, enlarging picture through a video signal to the display

where the status of fiber end-face is showed clearly in the end.

Not only portable, easily in-hand, MC-750V optical video microscope is also multi-functional.

It can detect simplex and ribbon fiber ends located in both male and female connectors, as well as other fiber units.

Also, working comfortably is it’s another feature. Eliminating the need to finding solutions for hard-to-reach areas inspection, MC-750V optical video microscope can detect connectors even installed on the backside of patch panels or inside hardware devices, providing you a completely convenience for checking.

Overview

1.   2.5“ screen
2.  400x magnification
3.  Probe inspection
4.  High resolution
5.  2G storage
6.  Brightness and contrast is adjustable
7.  Both male and female adapter inspection
8.  Battery capacity indication
9.  Date and Time dispaly


Specification

Standard accessory

1. Probe

2. LCD Screen

3. Standard Tips: 2.5PC-M/FC-SC-F/LC-F
4. Power Adapter

5. 2G SD Card/Reader

6. USB Wire
7. Earphone

8. Video Wire

9. Black Soft Bag

Optional Accessories

Ordering Information

 MC-750V-C

C= Connector

C1:FC/SC-F

C2:LC/MU-F

C3:FC/APC-F

C4:SC/APC-F

C5:ST-F

C6:MU-F

C7:E2000-F

C8:2.5PC-M

C9:1.25PC-M

C10: 1.25APC-M
