EUI/EUP tester EUS-1001
Negotiable
/ Set
1 Set(Min.Order)
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Injectronix | |
| Model Number | EUS-1001 | Usage | Other, Auto Testing Machine, Repair Test Kits for EUP and EUI |
Product Description
Specifications

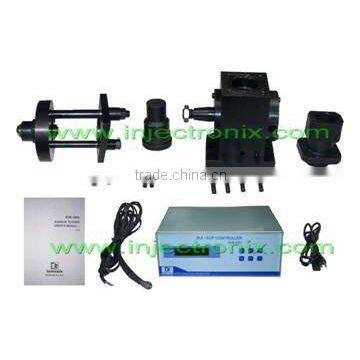

Test an EUI or an EUP on a conventional pump test bench. Offer adapter kits for most EUIs and EUPs on the world market.The EUS-1001 repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP).The tester consists of a mechanical cam box(CB-1000) with specified EUI/EUP adapter kits and an electronic controller (EU-1001). The cam box will be driven by a standard high pressure fuel injection pump test bench.
Testing an EUI Testing an EUP
The tester is capable to test EUI/EUP products for following brands of manufacturers
EUI/EUP Applications
Design Features
One cambox for all major EUI/EUP models with corresponding adapters and camshafts Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench
Controller is designed for three kinds of drive mode:
Low voltage for most battery voltage driven EUI/EUP
High voltage for Cat EUI
Cumming Celect EUI
Adjustable Begin of Injection (BOI) in Crank Angle Degrees
Adjustable Injection Period (PW) in Crank Angle Degrees
Engine standard cam lobe designs:
Four levels of cam lift
Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams NEW Release: EU-3000 Controller and adapter for Wolkswagen Piezo EUI (optional)
