EUS-2000 Repair Test Kits for EUP and EUI
US$ 1,000 - 10,000
/ Set
1 Set(Min. Order)
- BEIJING TIANJIN SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | INJECTRONIX | |
| Model Number | EUS-2000 | Warranty | 15 Miles |
Product Description
Specifications
The EUS-2000 can test almost EUI/EUP, Pls kindly find the attached file which EUI/EUP can test.EUS 2000 Repair Test Kits for EUP and EUI
Test an EUI or an EUP on a conventional pump test bench. Offer adapter kits for most EUIs and EUPs on the world market.

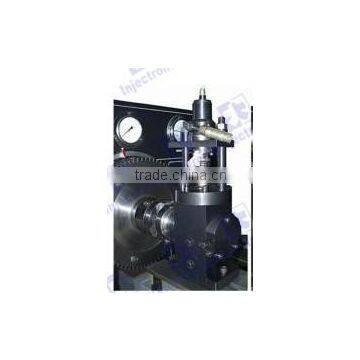

repair tester is designed to perform repair tests for different type of Electronic Unit Injectors and Electronic Unit Pumps The tester consists of a mechanical cam box with customer specified EUI/EUP adapter kits and a modular designed electronic controller The CB 1000 cam box is driven by a standard high pressure fuel injection pump test bench. modular designed to fit customer’s applications for testing various EUI/EUP.
Design Features
One cambox for all major EUI/EUP models with corresponding adapters and camshafts Cambox mounting height 125mmEU-2000 Controller with its modular design may be tailored to meet various customer application.
Customer may upgrade EU 2000 by adding a few more optional modules
EU 2000 is able to detect and enable automatically the installed modules in the system
Base system. Single solenoid EUI/EUP module
Most of single EUI/EUP on the market
Cummins CELECT EUI
Option. Dual-solenoid module for Delphi E3 EUI
Option. Piezo EUI module for VW Piezo EUI
Option. Response time measurement module
NEW RELEASE! Option. Cummins ISX EUI metering and timing control module kits, including
TP-2000 Hydraulic Module
Adapter for injectors of Cummins ISX and Scania engines
Adapter for Injectors of Cummins QSK Series engines
Hoses and cablesAdjustable Beginning of Injection (in crank angle degrees
Adjustable injection periodin crank angle degrees
Engine standard cam lobe designs:
Four levels of cam lifts
Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams
