Home > Products > Common Rail Equipment > CRS-4000 common rail system tester

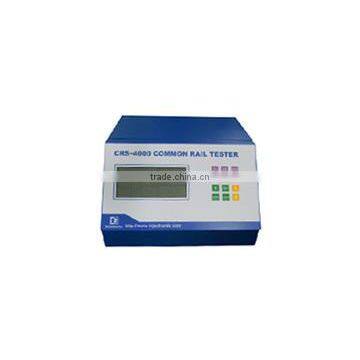

CRS-4000 common rail system tester
- 100 Set / Sets per Month
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Injector | Size | 54*54*42CM | |
| Brand Name | Injectronix | Model Number | CRS-4000 | |
| Warranty | 1 Years |
Product Description
Specifications
to test common rail pump and 6 injectors of solenoid & piezo as Bosch, Denso, Delphi, SiemensFeatures:
CR Injector Drivers:
* 6 solenoid injectors
** High voltage for Bosch, Denso injectors
** Low voltage for Delphi injectors
* 6 piezoelectric injectors, made by Siemens and Bosch (optional module)
* Short circuit protection for both solenoid and piezo injector drivers
CRS-4000 Applications
CR Pump Drivers:
* Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
** Testing pumps with single regulation valve
* Bosch CP1/CP2/CP3
* Delphi CRSP
* Denso HP3/HP4
** Testing Siemens DCP pump with two regulation valves
** Drive 3 DRVs for testing pump capability
* 2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump (optional module)
Fuel Rail Pressure Sensor
* Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
* Automatic (close-loop)rail pressure control
* Software based over-pressure protection
User Interface
* Small key pad
* Large LCD screen
Others
* One year manufacture warranty
* Injector and pump test procedure and database, off-line
* DRV adaptor for pump flow rate test (Optional)
* Rich accessories
