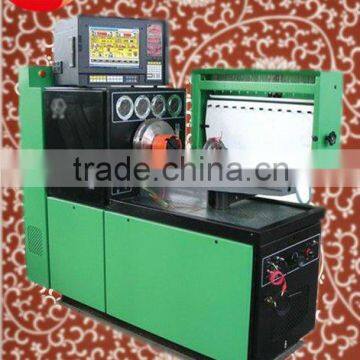

testing bench for diesel pumps -LCD Screen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Injectronix | |
| Model Number | 12PSB | Usage | Other, diesel pump testing bench |
Product Description
Specifications
12PSB Series Diesel Pump Test BenchConventional diesel pump test bench.
12PSB Series Test Benches are the industry standard, general purpose test benches for diesel fuel injection pumps and designed to perform variety of diesel fuel system repairing tests. The test benches are able to test traditional mechanical in-line pumps and distributor pumps. With necessary electronics and adapting kits the test benches are also capable of testing electronic pumps and electronic fuel injection systems, such as common rail systems, electronic unit injectors (EUIs), electronic unit pumps (EUPs), electronic VE pumps, and electronic in-line pumps. Specification
| AC Motor | 3-Phase AC Induction Motor |
| Motor Speed Control | VFD(Variable Frequency Drive)Motor Controller |
| AC Power | 3-Phase, 380V/50Hz, 380V/60Hz, or 230V/60Hz, 11, 15, 18.5 kW |
| Parameter Display Mode | Digital Display or LCD Display |
| Motor Speed Adjustable Range | 0-4000 rpm |
| Fuel Delivery Measurement Cylinders | 12 |
| Measurement Graduates | 150 and 45 cc |
| Fuel Injection Counter | Injection synchronized with pump speed |
| Pump Mounting Height – from Platform to Motor Shaft Center | 125mm |
Other Functions
| 12V/24V DC Power Supply |
| Preset of Ten Speeds |
| Digital Display of Temperature |
| Measure Internal Pressure of VE Pump |
| Measure Fuel Return Flow of Distributing Pump |
| Air Supply |
Optional Add-On Electronics and Fixtures
Refrigerator type fuel cooler for fuel temperature control Common Rail Systems
| High Pressure Pumps | # of Injectors | Injector Technology | Common Rail System Tester |
| Bosch CP1, CP2, CP3 Delphi CRSP Denso HP3,HP4 | 6 | Solenoid | CRS-1001 |
| Bosch CP1, CP2, CP3, Delphi CRSP Denso HP3,HP4 Siemens DCP | 1 | Solenoid/ Piezoelectric | CRS-3000 |
| Denso ECD-U2 | 6 | Solenoid | CRS-2000 |
Detailed description of CRS-1000, CRS-2000 and CRS-3000 refers to the respective pages. EUI/EUP
The EUI/EUP repair test fixture EUS-1001, including a cambox and other accessories, is designed to match with a standard pump test bench, such as 12PSB series, to perform repair tests on various models of EUIs and EUPs.Details refer to the pages for EUS-1001. Order Format
Part Number of Required Test Bench Model
Example
