CRS-4000 Common rail injectors and pumps tester
- Beijing tiajin qingdao fujian shanghai guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | injectronix | |
| Model Number | CRS-4000 | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
Features
- Modular design to tailor customer's application
- CR Injector Drivers
- 6 solenoid injectors
- High voltage for Bosch, Denso injectors
- Low voltage for Delphi injectors
- 6 piezoelectric injectors, made by Siemens and Bosch
- Short circuit protection for both solenoid and piezo injector drivers
- 6 solenoid injectors
- CR Pump Drivers:
- Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
- Testing pumps with single regulation valve
- Bosch CP1/CP2/CP3
- Delphi CRSP
- Denso HP3/HP4
- Testing Siemens DCP pump with two regulation valves
- Drive 3 DRVs for testing pump capability
- 2 special output channels for testing Denso HP0 (ECD-U2) pump
- Testing pumps with single regulation valve
- Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
- Fuel Rail Pressure Control
- Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
- Automatic (close-loop) rail pressure control
- Software based over-pressure protection
- User Interface One year manufacture warranty
- Small key pad
- Large LCD screen
- Injector and pump test plans database on a CD
- DRV adaptor for pump flow rate test (Optional)
- Rich accessories

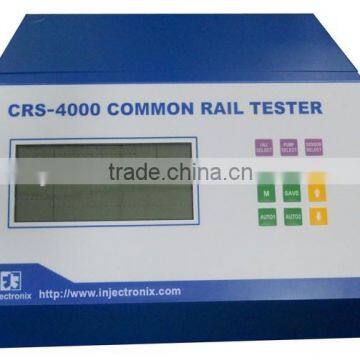

CRS-4000 Controller
Front Panel
LCD Display
Back Panel
Package: professional packing with great protection
Shipping : By Express (DHL, TNT, UPS, FEDEX,EMS door to door services), Air express to your airport,
Delievery time 3-7 days by express.
1.)24 hours reply immediately;
2.)Best quality and good price support;
3.)Dr JIang which worked on Detroit company twenty years in USA, is our company's R&D team leader to satisfy your special demands.
We support TT payment,West Union,also paypal and Trade assurance.
Q: How can i get this product?
A: We can by Express (DHL, TNT, UPS, FEDEX,EMS), Air express to your airport, by sea
Q:Do you have after-sales support?
A:Yes, We have one year warranty and lifetime technical support.
Please feel free contact us for more details,
INJECTRONIX is your best choice!!!
Hope we can have a communications with each other.
Looking forward receiveing from you.
