Product Details
| Place of Origin | Beijing, China | Brand Name | Injectronix | |
| Model Number | CRS-4000 | Warranty | 1 Years |
Product Description
Specifications
Common Rail System TesterTest all kinds of diesel common rail fuel injection systems
One year manufacture warranty

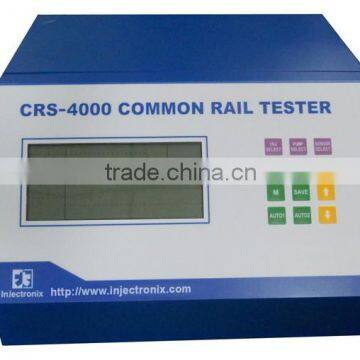

CRS-4000 is a cost-effective modular designed equipment to test all kinds of diesel common rail fuel injection systems
Features:
CR Injector Drivers:
6 solenoid injectors
High voltage for Bosch, Denso injectors
Low voltage for Delphi injectors
6 piezoelectric injectors, made by Siemens and Bosch (optional module)
Short circuit protection for both solenoid and piezo injector drivers
CR Pump Drivers:
Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
Testing pumps with single regulation valve
Bosch CP1/CP2/CP3
Delphi CRSP
Denso HP3/HP4
Testing Siemens DCP pump with two regulation valves
Drive 3 DRVs for testing pump capability
2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump (optional module)
Fuel Rail Pressure Sensor
Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
Automatic (close-loop)rail pressure control
Software based over-pressure protection
User Interface
Small key pad
Large LCD screen
Others
One year manufacture warranty
Injector and pump test procedure and database, off-line
DRV adaptor for pump flow rate test (Optional)
Rich accessories
