common rail tester

Specifications

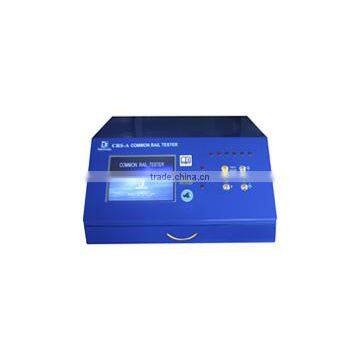

CRS-A Common Rail Tester is the electronic equipment for testing all kinds of common rail fuel injection injectors and pumps by Bosch, Delphi, Denso and Siemens. Upgrade a traditional
diesel high pressure pump test bench to a full functioned equipment for all tests of repairing common
rail injectors, pumps or CR systems.
CR Injector Drivers:
* 6 solenoid injectors
  ** High voltage for Bosch, Denso injectors
  ** Low voltage for Delphi injectors
* 4 piezoelectric injectors, made by Siemens

* Short circuit protection for both solenoid and piezo injector drivers

CR Pump Drivers:
* Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids
  ** Testing pumps with single regulation valve
    *** Bosch CP1/CP2/CP3
    *** Delphi CRSP
    *** Denso HP3/HP4
  ** Testing Siemens DCP pump with two regulation valves
  ** Drive 3 DRVs for testing pump capability
* 2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump

CRS-A Applications

Fuel Rail Pressure Sensor
* Pre-calibrated for Bosch, Delphi, Denso pressure sensors
* User calibrateable for different pressure sensor
* Automatic rail pressure control
* Software based over-pressure protection
User Interface
* Touch screen with a simple 4-key panel
* User friendly multi-language interface
* User manageable test database
* Standard keyboard and mouse
* Standard SD card port for system software upgrade, a SD card is included in the package
* 6 LED to indicate injector status
* Standard VGA port for external large screen display
Others
* One year manufacture warranty
* One year software free upgrade
* Injector and pump test procedure and database
* DRV adaptor for pump flow rate test (Optional)
* Rich accessories
* Matching supporting cabinet with 4-wheels(Optional)
