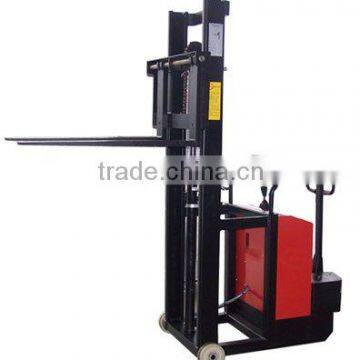

Semi electric stacker--SPN0516/25
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | SPN-B | |
| Type | Other, Stacker | Power Souce | AC Motor | |
| Rated Loading Capacity | 500/1000kg | Max. Lifting Height | 1600/2000/2500mm | |
| Min. Lifting Height | 75mm | Fork Length | 800mm | |
| Fork Width | 210~800mm | Overall Dimensions | 2100*820mm | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
The specification of Semi electric stacker--SPN0516/25
| Model | SPN0516 | SPN0516-B | SPN0520-B | SPN0525-B | |
| Rated load Q | Kg | 500 | |||
| Fork minimum height | mm | 85 | 75 | ||
| Fork maximum height | mm | 1600/2500 | 1600 | 2000 | 2500 |
| Mast minimum height | mm | 1980 | 2050 | 1550 | 1800 |
| Fork length | mm | 900 | 800 | ||
| Total fork width | mm | 330~640/550 | 210-800 | ||
| Stacker body size (Length× Width) | mm | 2100×820 | |||
| Minimum turning radius | mm | 1200 | |||
| Lifting motor power | kw | 1.5 | 1.6 | ||
| Accumulator | V/Ah | 12/150 | 12/100 | ||
| Net weight | kg | 700 | 650 | 750 | 800 |
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
