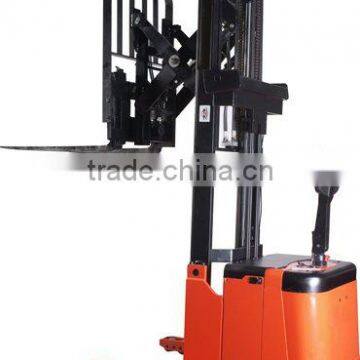

Power Reach Stacker WRP10
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | WRP10 | |
| Type | Other, Power Reach Stacker | Power Souce | AC Motor | |
| Rated Loading Capacity | 1000KG | Max. Lifting Height | 2835mm | |
| Min. Lifting Height | 85mm | Fork Length | 1150mm | |
| Fork Width | 100 | Overall Dimensions | Pls Check | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
The specification of Power Reach Stacker WRP10
| Characteristic | 1.2 | Model | Unit | WRP10 |
| 1.3 | Power(battery,diesel,petrol,natural gas,manual) | electric | ||
| 1.4 | standing,Manner of operation:hand,pedestrian, seated,sorting-picker | pedestrian | ||
| 1.5 | Load Capacity | Q(kg) | 1000 | |
| 1.6 | Load Centre distance | c(mm) | 600 | |
| 1.8 | Load Centre distance | x(mm) | 394 | |
| 1.9 | Wheelbase | y(mm) | 1237 | |
| Weight | 2.1 | Weight(including battery) | kg | 1700 |
| 2.2 | Axle loading, laden front/rear | kg | 930/1770 | |
| 2.3 | Axle loading, unladen front/rear | kg | 1000/700 | |
| Wheel | 3.1 | Tyres(rubber, high-elastomer, pneumatic,polyurethane | high-elastomer | |
| 3.2 | Wheel size drive side | mm | 230×70 | |
| 3.3 | Wheel size load side | mm | 102×70 | |
| 3.5 | wheel,number(x=drive wheel) | 1x+4 | ||
| 3.7 | Track width(rear)load side | b11(mm) | 989 | |
| Dimensions | 4.1 | Fork/mast tilting angle forward/backward | α/β(°) | 2/4 |
| 4.2 | Lower mast height | h1(mm) | 1980 | |
| 4.3 | Free lift height | h2(mm) | 80 | |
| 4.4 | Lift height | h3(mm) | 2835 | |
| 4.5 | Extended mast height | h4(mm) | 4130 | |
| 4.9 | Handle height,Max/Min | h14(mm) | 910/1430 | |
| 4.15 | Fork height (mast retracted) | h13(mm) | 65 | |
| 4.19 | Overall length | l1(mm) | 1995 | |
| 4.2 | Length between fork backrest and vehicle body | l2(mm) | 1046 | |
| 4.21 | Overall width | b1(mm) | 905 | |
| 4.22 | Fork size | s/e/l(mm) | 35/100/1150(950) | |
| 4.25 | Fork outer width | b5(mm) | 220~760 | |
| 4.26 | distance between supporting arm and deck load | b4(mm) | 865 | |
| 4.28 | Moveforward distance | l4(mm) | 540 | |
| 4.32 | Ground clearance, center of wheelbase | m2(mm) | 50 | |
| 4.33 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2325 | |
| 4.34 | Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2277 | |
| 4.35 | Swerve radius | Wa(mm) | 1475 | |
| Performance | 5.1 | Travel Speed Load/without load | km/h | 4.5/5.0 |
| 5.2 | Lifting speed Load/without load | mm/s | 137/185 | |
| 5.3 | Lowering speed Load/without load | mm/s | 125/129 | |
| 5.8 | Max Gradeability Load/without load | % | 5/10 | |
| 5.1 | Brakes | electriomagentic | ||
| Motor | 6.1 | Driving motor power s2 60min | kw | 1.5 |
| 6.2 | Lifting motor s3 15% | kw | 3 | |
| 6.3 | Battery,according to DIN(or other) | 3PzS | ||
| 6.4 | Battery voltage,normal capacity K5 | V/Ah | 24/300(270,240) | |
| Other | 8.1 | Type of drive control | MOSFET Control | |
| 8.4 | Noise level at operator's ears DIN12053 | dB(A) | 67 |
Company Information
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
