Germany ZF driving wheel Electric Stacker--CS1232UI/UII(-FFL)
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuks | Model Number | CS1232UI/UII(-FFL) | |
| Dimension(L*W*H) | pls check the below | Certification | CE | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description

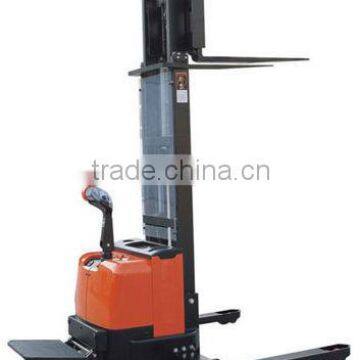

The Product Intro of Electric Hydraulic Stacker CS1232UI/UII(-FFL)
(Straddle type)
Smooth travel and lift with excellent controls reduces product damages and increases productivity.
Lift limit switch operates at maximum lift height to shut off pump motor.
A heavy-duty 24-volt electrical system provides good travel and lift speeds.
High quality hydraulic pump assure very low noise, maximum efficiency and durability.
Drive unit is equipped an electromagnetic brake that is spring applied and electrically released.
The brake is activated by the control handle position.
The handle ergonmically designed with a raising, lowering and horn bottom.
Speed automatically reduces when driving with the forks at a height of 12" or higher.
Built with a Germany ZF driving wheel. It has more power, and allows it to work continuously for a much longger time.
The CURTIS electronic controller helps provide plenty of low end torque while increasing the motor and battery life.
Foot pedal reduces fatigue.
Excellent stability in operation.
Adjustable fork , min. fork height is only 2inch.
Straddle leg design suitable for two faces or low pallet
The Specification of Electric Hydraulic Stacker CS1232UI/UII(-FFL)
Residual Capacity at different lifting height
1KG=2.2LB 1INCH=25.4MM
| Up to h3 mm | ACTUAL CAPACITY (Q) kg | |
| Load centre distance (C)mm | ≤600(mm) | ≤700(mm) |
| ≤2500 | 1200 | 600 |
| ≤3200 | 1000 | 500 |
Identifica | 1.1 | Manufacturer’s type designation | unit | CS1232UIFFL /CS1232UI | CS1232UII-FFL /CS1232UII |
| 1.2 | Drive:electric(battery or mains),diesel, petrol,fuel gas,manual | electric | |||
| 1.3 | Type of operation:hand,pedestrian, stand ing,seated, order-picker | Pedestrian | |||
| 1.4 | Load Capacity /rated load | Q (t) | 1.2 | 1.2 | |
| 1.5 | Load center distance | C mm | 600 | 600 | |
| 1.6 | Load distance, centre of drive axle to fork | X mm | 765 | 725 | |
| 1.7 | Wheelbase | y mm | 1342 | 1342 | |
| Weights | 2.1 | Service Weight | Kg | 995 | 1165 |
| 2.2 | Axle loading, laden front/rear | Kg | 1065/1130 | 1100/1265 | |
| 2.3 | Axle loadings, unladen front/rear | Kg | 700/295 | 800/365 | |
| Wheels, Chassis | 3.1 | Tyres:solid rubber, superelastic, pneumatic, polyurethane) | polyurethane | ||
| 3.2 | Tyre size, front | 230x75 | 230x75 | ||
| 3.3 | Tyre size, rear | 80x70 1) | 80x70 1) | ||
| 3.4 | Additional wheels(dimensions) | 124x60 | 124x60 | ||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+2/4 | 1x+2/4 | ||
| 3.6 | Track width,front | b10(mm) | 570 | 570 | |
| 3.7 | Track width,rear | b11(mm) | 395 | 1394 | |
| Basic Dimensions | 4.1 | Lowered mast height | h1(mm) | 2100 | 2115 |
| 4.2 | Free lift | h2(mm) | 1580/100 | 1580/100 | |
| 4.3 | Lift height | h3(mm) | 3115 | 3150 | |
| 4.4 | Extended mast height | h4(mm) | 3665 | 3720 | |
| 4.5 | Height of tiller in drive position min./max. | h14(mm) | 865/1287 | 865/1287 | |
| 4.6 | Lowered height | h13(mm) | 80 | 50 | |
| 4.7 | Overall length | l1(mm) | 1997 | 1830 | |
| 4.8 | Length to face of forks | l2(mm) | 847 | 880 | |
| 4.9 | Overall width | b1(mm) | 795 | 1518 | |
| 4.10 | Fork dimensions | s/e/l(mm) | 60/180/1150 | 35/100/950 | |
| 4.11 | Width over forks | b5(mm) | 685 | 200/700 | |
| 4.12 | Ground clearance, center of wheelbase | m2(mm) | 25 | 40 | |
| 4.13 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2294 | 2409 | |
| 4.14 | Aisle width for pallets 800x1200 lengthways | Ast(mm) | 2241 | 2409 | |
| 4.15 | Turning radius | Wa(mm) | 1650 | 1650 | |
| Performance Data | 5.1 | Travel Speed, laden/unladen | km/h | 5/5.5 | 5/5.5 |
| 5.2 | Lift speed, laden/unladen | mm/s | 97/164 | 97/164 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 128/120 | 128/120 | |
| 5.4 | Max.gradient performance, laden/unladen | % | 6/12 | 6/12 | |
| 5.5 | Service brake | Electromagnetic | |||
| E-Motor | 6.1 | Drive motor rating s2 60min | kw | 1.5 | 1.5 |
| 6.2 | Lift motor rating at s3 15% | kw | 2.2 | 2.2 | |
| 6.3 | Battery acc. To DIN, no | 3VBS | 3VBS | ||
| 6.4 | Battery voltage, norminal capacity | V/Ah | 24/210 | 24/210 | |
| Others | 7.1 | Type of drive control | MOSFET Control | ||
| 7.2 | Sound level at driver’s ear acc.to EN12053 | dB(A) | 67 | 67 | |
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
