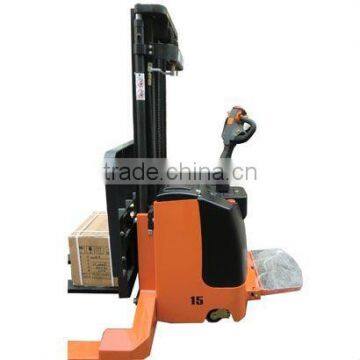

1.5 Ton Power Stacker CK Series
Negotiable
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | cheuk's | Model Number | CK | |
| Type | Other, Power Stacker | Power Souce | AC Motor | |
| Rated Loading Capacity | 1.5T | Max. Lifting Height | 2500mm | |
| Min. Lifting Height | 85mm | Fork Length | 1150mm | |
| Fork Width | 100 | Overall Dimensions | Pls check | |
| Certification | CE | After-sales Service Provided | No overseas service provided |
Product Description
The Product Intro of Power Forklift stacker-CK Series
1.CURTIS controller imported from US
2.Imported hydraulic pump
3.CURTIS battery level meter and hour meter imported from US
4.Auto-computer charger
5.Original Germany FREI control handle
The Product Intro of Power Forklift stacker-CK Series
| Characteris tics | 1.1 | Manufacturer’s type designation | unit | CK1525-A | |
| 1.2 | Drive:electric(battery or mains),diesel,petrol,fuel gas,manual | electric | |||
| 1.3 | Type of operation:hand,pedestrian,stand ing,seated, orderpicker | Standing | Pedestrian | ||
| 1.4 | Load Capacity /rated load | Q kg | 1500 | 1500 | |
| 1.5 | Load center distance | C mm | 600 | 600 | |
| 1.6 | Load distance, centre of drive axle to fork | X mm | 490 | 490 | |
| 1.7 | Wheelbase | Y mm | 1340 | 1340 | |
| Weight | 2.1 | Service Weight | kg | 781 | 761 |
| 2.2 | Axle loading, laden front/rear | kg | 911/1620 | 903/1607 | |
| 2.3 | Axle loadings, unladen front/rear | kg | 690/340 | 677/334 | |
| Wheel | 3.1 | Tyres:solid rubber, superelastic, pneumatic, polyurethane | polyurethane | ||
| 3.2 | Tyre size, front | mm | Φ250×80 | Φ250×80 | |
| 3.3 | Tyre size, rear | mm | Φ80×70 | Φ80×70 | |
| 3.4 | Additional wheels(dimensions) | mm | Φ125×50 | Φ125×50 | |
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x-2/4 | 1x-2/4 | ||
| 3.6 | Track width,front | mm | 690 | 690 | |
| 3.7 | Track width,rear | 1394/1084 | 1394/1084 | ||
| Dimensions | 4.1 | Overall height(fork without lift) | 1750 | 1750 | |
| 4.2 | Free height | h2 mm | / | / | |
| 4.3 | Lift height | h3 mm | 2500 | 2500 | |
| 4.4 | Extended mast height | h4 mm | 2965 | 2965 | |
| 4.5 | ork terrain clearance(Lowest) | h5 mm | 66/40 | 66/40 | |
| 4.6 | Handle terrain clearance(Max/Min) | h6 mm | 1350/985 | 1350/985 | |
| 4.7 | Overall length | L1 mm | 2070/1870 | 2010/1810 | |
| 4.8 | Length to face of forks | L2 mm | 925 | 865 | |
| 4.9 | Inner width of leg | b2 mm | 1270/960 | 1270/960 | |
| 4.10 | Overall width | b1 mm | 1518/1208 | 1518/1208 | |
| 4.11 | Fork dimensions(panel beating) | s/e/l mm | 180/66/1150 | ||
| Fork dimensions(forge) | s/e/l mm | 100/40/950 | |||
| 4.12 | Width over forks | b3 mm | 580,200-720 | ||
| 4.13 | Ground clearance, center of wheelbase | mm | 30 | 30 | |
| 4.14 | Aisle width for pallets 800x1200 lengthways | Ast mm | 2350 | 2260 | |
| 4.15 | Turning radius | Wa mm | 1610 | 1520 | |
| Performance | 5.1 | Travel Speed, laden/unladen | km/h | 5.2/6 | 4/5 |
| 5.2 | Lift speed, laden/unladen | mm/s | 90/120 | 90/120 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 125/80 | 125/80 | |
| 5.4 | Max.gradient performance, laden/unladen | % | 5/8 | 5/8 | |
| 5.5 | Service brake | Electromagnetic | |||
| Motor | 6.1 | Drive motor rating s2 60min | kw | 1.2 | 1.2 |
| 6.2 | Lift motor rating at s3 15% | kw | 2.2 | 2.2 | |
| 6.3 | Battery voltage, norminal capacity | V/Ah | 24/210(210-270) | ||
| 6.4 | Battery weight | kg | 250 | 250 | |
| Others | 7.1 | Type of drive control | MOSFET Ctrolon | ||
| 7.2 | Sound level at driver’s ear acc.to EN12053 | dB(A) | <70 | <70 | |
