Power Stacker CG1646
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | CG1646 | |
| Type | Other, Power stacker | Power Souce | AC Motor | |
| Rated Loading Capacity | 1.6T | Max. Lifting Height | 5100MM | |
| Min. Lifting Height | 85mm | Fork Length | 1150mm | |
| Fork Width | 100 | Overall Dimensions | Pls check | |
| Certification | ISO9001 | After-sales Service Provided | No overseas service provided |
Product Description

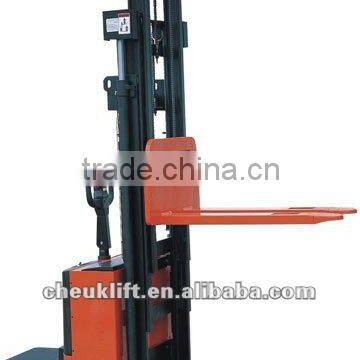

The Product Intro of Power Stacker CG1646
CG1646
Speed automatically reduces when driving with the fork at a height of 12" or higher.
Small turn radius makes it suitable for narrow passage ways.
The CURTIS electronic controller from helps provide plenty of low end torgue while increasing the motor and battery life.
Foot pedal reduce fatigue.
Conforms to ergonomic requirements.
Conforms to EN 1726-1 and EN 1175-1 Smooth travel and lift with excellent controls to reduces product damages and increases productivity.
Lift limit switch operates at maximum lift height to shut off pump motor.
A heavy-duty 24-volt electrical system provides good travel and lift speeds.
High quality hydraulic pump assures very little noise, maximum efficiency and durability.
Drive units is equipped an electromagnetic brake that is spring applied and electrically released. The brake is activated by the control handle position. The handle is ergonmically designed with a raise, lower and horn button. European driving unit European pump station
The specification of Power Stacker CG1646
Residual Capacity at different lifting height
1KG=2.2LB 1INCH=25.4MM
| Up to h3 mm | ACTUAL CAPACITY (Q) kg | |
| 2500 | 1600 | 1000 |
| 3700 | 1000 | 600 |
| 4600 | 800 | 500 |
| Load centre distance (C)mm | 600 | 700 |
1KG=2.2LB 1INCH=25.4MM
| Identification | 1.1 | Manufacturer’s type designation | unit | CG1646 |
| 1.2 | Drive:electric(battery or mains),diesel, petrol, fuel gas,manual | electric | ||
| 1.3 | Type of operation:hand,pedestrian,standing, seated, order-picker | Pedestrian | ||
| 1.4 | Load Capacity /rated load | Q (t) | 1.6 | |
| 1.5 | Load center distance | C mm | 600 | |
| 1.6 | Load distance, centre of drive axle to fork | X mm | 785 | |
| 1.7 | Wheelbase | y mm | 1310 | |
| Weights | 2.1 | Service Weight | Kg | 1365 |
| 2.2 | Axle loading, laden front/rear | Kg | 1410/1555 | |
| 2.3 | Axle loadings, unladen front/rear | Kg | 1010/355 | |
| Wheels, Chassis | 3.1 | Tyres:solid rubber, superelastic, pneumatic, polyurethane) | polyurethane | |
| 3.2 | Tyre size, front | 250x78 | ||
| 3.3 | Tyre size, rear | 80x70 1) | ||
| 3.4 | Additional wheels(dimensions) | 150x54 | ||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+2/4 | ||
| 3.6 | Track width,front | b10(mm) | 790 | |
| 3.7 | Track width,rear | b11(mm) | 390/515 | |
| Basic Dimensions | 4.1 | Lowered mast height | h1(mm) | 2098 |
| 4.2 | Lift height | h3(mm) | 4514 | |
| 4.3 | Extended mast height | h4(mm) | 5100 | |
| 4.4 | Height of tiller in drive position min./max. | h14(mm) | 965/1365 | |
| 4.5 | Lowered height | h13(mm) | 86 | |
| 4.6 | Overall length | l1(mm) | 1950 | |
| 4.7 | Length to face of forks | l2(mm) | 800 | |
| 4.8 | Overall width | b1(mm) | 1050 | |
| 4.9 | Fork dimensions | s/e/l(mm) | 60/180/1150 | |
| 4.10 | Width over forks | b5(mm) | 570/695 | |
| 4.11 | Ground clearance, center of wheelbase | m2(mm) | 26 | |
| 4.12 | Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2458 | |
| 4.13 | Aisle width for pallets 800x1200 lengthways | Ast(mm) | 269 | |
| 4.14 | Turning radius | Wa(mm) | 1620 | |
| Performance Data | 5.1 | Travel Speed, laden/unladen | km/h | 5.1/5.5 |
| 5.2 | Lift speed, laden/unladen | mm/s | 113/160 | |
| 5.3 | Lowering speed, laden/unladen | mm/s | 95/100 | |
| 5.4 | Max.gradient performance, laden/unladen | % | 6/12 | |
| 5.5 | Service brake | Electromagnetic | ||
| E-Motor | 6.1 | Drive motor rating s2 60min | kw | 1.2 |
| 6.2 | Lift motor rating at s3 15% | kw | 3 | |
| 6.3 | Battery acc. To DIN, no | 4PzS | ||
| 6.4 | Battery voltage, norminal capacity | V/Ah | 24/280 | |
| Others | 7.1 | Type of drive control | MOSFET Control | |
| 7.2 | Sound level at driver’s ear acc.to EN12053 | dB(A) | 67 |
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
