Home > Products > Voltech Power Analyzer & Transformer Tester > PM3000ACE(Voltech) Three-Phase Power Analyzer
PM3000ACE(Voltech) Three-Phase Power Analyzer
- 100 Set / Sets per Month
- Hongkong
You May Like
Product Details
| Place of Origin | United Kingdom | Brand Name | Voltech | |
| Model Number | PM3000ACE |
Product Description
Specifications
1. Voltech PM3000ACE Power Analyzer2. 0.05% basic accuracy.
3. Measures W, V, A, VA, Var, power factor
4. Three Phase

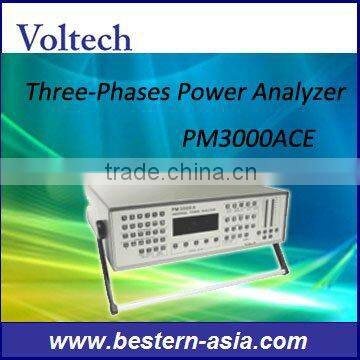

Voltech PM3000ACE Three-Phase Power Analyzer
• Single and three-phase models.
• Intuitive front-panel or Windows software operation.
• High 0.05% basic accuracy.
• Wide bandwidth measurements, DC and 0.1Hz to 1MHz.
• Measures W, V, A, VA, Var, power factor, Cos, Vpk, Apk, crest factors, frequency and inrush current.
• Harmonics of V, A (incl. phase) and W to the 99th. THD.
• Integrator for W-hr, VA-hr, A-hr, VA-hr, average and target PF.
• Crest factors up to 20.
• Accurate on distorted waveforms and at low power factors.
• VPAS PC software for set-up, data storage and handling.
• IEC61000-3 Windows software for full or pre-compliance testing.
• All interfaces fitted as standard. (See back page for model options).
• All instruments supplied with test leads, user manual and certificate of calibration and conformance traceable to international standards.
• Range of accessories includes current clamps and transformers, PS1000 switch for inrush measurements and Ballast CT for electronic ballast testing.
Bestern Asia is exclusive agent of Voltech in CHINA and Hongkong.
Contact me for best price!
