Inform Inf-C 1000 UPS
Negotiable
/ Set
1 Set(Min. Order)
- Hongkong
You May Like
Product Details
| Place of Origin | Turkey | Brand Name | Inform | |
| Model Number | Informer Compact 1000 | Phase | Other, Line Interactive | |
| Protection | Other, Short circuit and overload protection,Lightning and surge protection | Weight | 15.5kgs | |
| Output Voltage | 220 / 230 Vac ± 12 % | Type | Line Interactive | |
| Application | Other, Industrial Control,Telecom and monitor |
Product Description
Specifications
1. Inform Authorized Distributor In CHINA2. Automatic Voltage Regulation
3. Fault Alarms and State Warnings
4. Cold Start

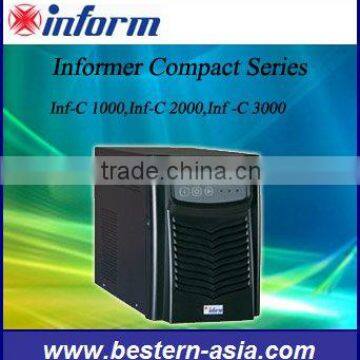

| INFORMER COMPACT SERIES Uninterruptible Power Systems Line Interactive Technology ( 1000-2000-3000 VA) Pure Sinewave Output UPS |
| MODEL | Informer Compact 1000 | Informer Compact 2000 | Informer Compact 3000 |
| INPUT | |||
| Capacity (VA) | 1000 VA | 2000 VA | 3000 VA |
| Voltage | 220 V ± 25 % | ||
| Frequency | 50 or 60 Hz ± 5 % | ||
| OUTPUT | |||
| Power Factor | 0.6 | ||
| Voltage (On mains) | 220 / 230 Vac ± 12 % | ||
| Voltage (On battery) | 220 / 230 Vac ± 5 % | ||
| Frequency (On battery) | 50 or 60 Hz ± 0,5 % | ||
| Wave From | Sine Wave, THD < 3 % | ||
| Voltage Regulation | AVR automatically increase output voltage 15% above input voltage if -9% to -25% of nominal AVR decrease output voltage 15% below input voltage if +9% to +25% of nominal | ||
| Transfer Time | 6 ms. | ||
| Overload | UPS automatically shuts down if overload exceeds 110% of nominal at 10min. (AC mode) and if overload exceeds 100% of nominal at 10 sec. (Battery mode) | ||
| Outlet | 3 pcs IEC & 2pcs Schuko Outlets | ||
| BATTERY | |||
| Type | Maintenance-free lead acid batteries | ||
| Recharge Time (hour) | 2 to 4 Hours 90% | ||
| Voltage | 24Vdc | 48Vdc | |
| Quantity | 2x12V 7Ah | 4x12V 7Ah | 4x12V 9Ah |
| Back Up Time | 5-30 minutes (depending on computer load) | ||
| Protection | Automatic self-test & discharge protection, replace battery indicator | ||
| DISPLAY | |||
| LED | Utility Normal, Back up, UPS Fault and Battery Condition | ||
| LCD | Load Level, Battery Level, Bypass, AVR, Battery Low-Replace-Fault, UPS Fault, Overload | ||
| Alarms | Line Failure, Battery Low, Overload and Fault | ||
| COMMUNICATION | |||||||||||
| Interface (Communication Ports) | RS232 standard | ||||||||||
Software
| standard | ||||||||||
| PHYSICAL | |||
| Net Weight (kg) | 15,5 | 23 | 27 |
| Dimension WxDxH (mm) | 175x370x247 | 175x473x247 | |
| STANDARDS | |||
| Standards | EN 62040-1-1 (safety), EN 62040-2 (EMC) | ||
