Home > Products > Uninterruptible Power Supply (UPS) > Emerson (Vertiv) ITA2 Series 1KVA–20KVA Online Rack-mount/Tower-type UPS(Uninterruptible Power Supply)

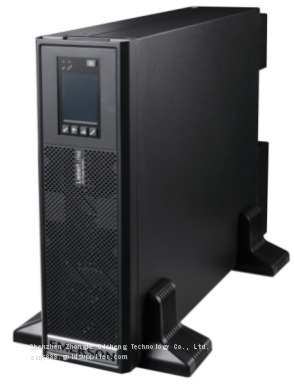

Emerson (Vertiv) ITA2 Series 1KVA–20KVA Online Rack-mount/Tower-type UPS(Uninterruptible Power Supply)
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C PayPal D/P Western Union Other
Product Details
| Brand | Emerson |
Product Description
| Parameter | 1K | 2K | 3K |
|---|---|---|---|
| Input Parameters | |||
| Input/Output System | Single Input/Single Output | Single Input/Single Output | Single Input/Single Output |
| Main/Backup Grid Compatibility | Same Source | Same Source | Same Source |
| Input Voltage Range | 100~288V | 100~288V | 100~288V |
| Input Frequency Range | 40Hz~70Hz | 40Hz~70Hz | 40Hz~70Hz |
| Input Current Harmonic Content | ≤5% @100% linear load | ≤5% @100% linear load | ≤5% @100% linear load |
| Input Power Factor | ≥0.99 @100% linear load ≥0.97 @50% linear load ≥0.94 @30% linear load | ≥0.99 @100% linear load ≥0.97 @50% linear load ≥0.94 @30% linear load | ≥0.99 @100% linear load ≥0.97 @50% linear load ≥0.94 @30% linear load |
| Battery | |||
| Charger | 8A Charging Current (Long Runtime Model) 2A Charging Current (Standard Model) | 8A Charging Current (Long Runtime Model) 2A Charging Current (Standard Model) | 8A Charging Current (Long Runtime Model) 2A Charging Current (Standard Model) |
| Battery Sections | 3 Sections, Non-Adjustable | 4 Sections, Non-Adjustable | 6 Sections, Non-Adjustable |
| Output Parameters | |||
| Rated Power | 1KW | 2KW | 3KW |
| Rated Voltage | 220/230/240V | 220/230/240V | 220/230/240V |
| Output Power Factor | 1 | 1 | 1 |
| Output Voltage Stability | 1% | 1% | 1% |
| Output Frequency Stability | ±0.1Hz | ±0.1Hz | ±0.1Hz |
| Output Voltage Waveform Distortion | Resistive Load: 3% Rectifier Load: 5% | Resistive Load: 3% Rectifier Load: 5% | Resistive Load: 3% Rectifier Load: 5% |
| Maximum Load Crest Factor | 3:1 | 3:1 | 3:1 |
| Dynamic Voltage Transient Range | 5% | 5% | 5% |
| Voltage Transient Recovery Time | 40ms to recover to 3% | 40ms to recover to 3% | 40ms to recover to 3% |
| Overload Capacity (% of Rated Load) | 105%~125% Load: 10min (Mains Mode) 60s (Battery Mode) 125%~150% Load: 60s (Mains Mode) 200ms (Battery Mode) >150% Load: 200ms (Mains/Battery Mode) | 105%~125% Load: 10min (Mains Mode) 60s (Battery Mode) 125%~150% Load: 60s (Mains Mode) 200ms (Battery Mode) >150% Load: 200ms (Mains/Battery Mode) | 105%~125% Load: 10min (Mains Mode) 60s (Battery Mode) 125%~150% Load: 60s (Mains Mode) 200ms (Battery Mode) >150% Load: 200ms (Mains/Battery Mode) |
| System Parameters & Standards | |||
| Installation Method | Tower/Rack Compatible | Tower/Rack Compatible | Tower/Rack Compatible |
| Overall Efficiency | 90.0% | 93.0% | 94.0% |
| ECO Efficiency | 98% | 98% | 98% |
| Switching Time (Main to Battery) | 0ms | 0ms | 0ms |
| Switching Time (Inverter to Bypass) | <20ms | <20ms | <20ms |
| Noise Level | 48dB (Front & Side) 47dB (Rear) | 50dB (Front & Side) 48dB (Rear) | 50dB (Front & Side) 48dB (Rear) |
| Protection Class | IP20 | IP20 | IP20 |
| Dimensions (mm) (W×H×D) | 430×85×400 | 430×85×470 | 430×85×540 |
| Weight (Kg) | 15.6kg (Standard) 7.1kg (Long Runtime) | 19.9kg (Standard) 8.6kg (Long Runtime) | 26.7kg (Standard) 10kg (Long Runtime) |
| Communication & Management | |||
| Communication Interface Types | USB, Ethernet, DB9 (Optional External Card Adapter) | USB, Ethernet, DB9 (Optional External Card Adapter) | USB, Ethernet, DB9 (Optional External Card Adapter) |
| LCD Screen | 2.8-inch Color Screen, Gravity Adaptive, Boot Guide | 2.8-inch Color Screen, Gravity Adaptive, Boot Guide | 2.8-inch Color Screen, Gravity Adaptive, Boot Guide |
| Environmental Parameters | |||
| Operating Temperature | 0~50°C (No Derating at 40°C, Linear Derating to 70% at 50°C) | 0~50°C (No Derating at 40°C, Linear Derating to 70% at 50°C) | 0~50°C (No Derating at 40°C, Linear Derating to 70% at 50°C) |
| Relative Humidity | 0~95% | 0~95% | 0~95% |
| Maximum Altitude | 3000m (No Derating) | 3000m (No Derating) | 3000m (No Derating) |
| Certifications & Tests | CE, CQC Energy Saving, Energy Star ROHS, Reach | CE, CQC Energy Saving, Energy Star ROHS, Reach | CE, CQC Energy Saving, Energy Star ROHS, Reach |
| Parameter | 5/6K | 10K | 16/20K |
|---|---|---|---|
| Input Parameters | |||
| Input/Output System | Single Input/Single Output | Single Input/Single Output Three-Phase Input/Single Output | Three-Phase Input/Single Output Three-Phase Input/Three-Phase Output |
| Main/Backup Grid Compatibility | Same Source | Compatible with Same Source and Different Sources | Compatible with Same Source and Different Sources |
| Input Voltage Range | 100~288V | 100~288V | 100~288V |
| Input Frequency Range | 40Hz~70Hz | 40Hz~70Hz | 40Hz~70Hz |
| Input Current Harmonic Content | <5% | <5% | <5% |
| Input Power Factor | 0.99 | 0.99 | 0.99 |
| Battery - External Battery | |||
| Compatible Battery Types (External) | Lead-Acid, Lithium, Nickel-Cadmium | Lead-Acid, Lithium, Nickel-Cadmium | Lead-Acid, Lithium, Nickel-Cadmium |
| Charger | Long Model: 5A Standard Model: 2A | Long Model: 8A Standard Model: 4A | Long Model: 13A Standard Model: 5A |
| Number of Battery Sections | 12/16/20 (Adjustable, Default: 16) | 24/32/40 (Adjustable, Default: 32) | -- |
| Output Parameters | |||
| Rated Power | 5KW/6KW | 10KW | 16KW/20KW |
| Rated Voltage (Phase Voltage) | 220/230/240V | 220/230/240V | 220/230/240V |
| Output Power Factor | 1 | 1 | 1 |
| Output Voltage Stability | 1% | 1% | 1% |
| Output Frequency Stability | ±0.1Hz | ±0.1Hz | ±0.1Hz |
| Output Voltage Waveform Distortion | Resistive Load: 2% Rectifier Load: 5% | Resistive Load: 2% Rectifier Load: 5% | Resistive Load: 2% Rectifier Load: 5% |
| Maximum Load Crest Factor | 3:1 | 3:1 | 3:1 |
| Dynamic Voltage Transient Range | 5% | 5% | 5% |
| Voltage Transient Recovery Time | 60ms | 60ms | 60ms |
| Overload Capacity (% of Rated Load) | 105%~125%: 5min 125%~150%: 1min >150%: 200ms | 105%~125%: 5min 125%~150%: 1min >150%: 200ms | 105%~125%: 5min 125%~150%: 1min >150%: 200ms |
| System Parameters & Standards | |||
| Installation Method | Tower/Rack Compatible | Tower/Rack Compatible | Tower/Rack Compatible |
| Overall Efficiency | Up to 95.5% | Up to 95.8% | Up to 96% |
| ECO Efficiency | 99% | 99% | 99% |
| Maximum Parallel Units | 4 Units | 4 Units | 4 Units |
| Switching Time (Main to Battery) | 0ms | 0ms | 0ms |
| Switching Time (Inverter to Bypass) | <4ms | <4ms | <4ms |
| Noise Level | 55dB | 55dB | 58dB |
| Protection Class | IP20 | IP20 | IP20 |
| Dimensions (mm) | 430×85×400 | 430×85×500 | 430×130×500 |
| Weight (Kg) | 11 | 15 | 23 |
| Communication & Management | |||
| Communication Interface Types | Built-in Network Port, USB, RS232, RJ45, Dry Contacts, REPO, Communication Card Holder, Parallel Port, LBS Port | Built-in Network Port, USB, RS232, RJ45, Dry Contacts, REPO, Communication Card Holder, Parallel Port, LBS Port | Built-in Network Port, USB, RS232, RJ45, Dry Contacts, REPO, Communication Card Holder, Parallel Port, LBS Port |
| Battery Temperature Sensor | Optional | Optional | Optional |
| LCD Screen | 2.8-inch Color Screen, Gravity Adaptive, Boot Guide | 2.8-inch Color Screen, Gravity Adaptive, Boot Guide | 2.8-inch Color Screen, Gravity Adaptive, Boot Guide |
| Environmental Parameters | |||
| Operating Temperature | 0~50°C | 0~50°C | 0~50°C |
| Relative Humidity | 0~95% | 0~95% | 0~95% |
| Maximum Altitude | 4600m (No Derating) | 3000m (No Derating) | 3900m (No Derating) |
| Certifications & Tests | CE, Energy Star, Telcordia, Energy Saving Certification, Seismic Test, Shipping Test RoHS, Reach Wet Dust Test, Fire Test, Extreme Test, High Altitude Test, Vehicle Test | CE, Energy Star, Telcordia, Energy Saving Certification, Seismic Test, Shipping Test RoHS, Reach Wet Dust Test, Fire Test, Extreme Test, High Altitude Test, Vehicle Test | CE, Energy Star, Telcordia, Energy Saving Certification, Seismic Test, Shipping Test RoHS, Reach Wet Dust Test, Fire Test, Extreme Test, High Altitude Test, Vehicle Test |
