Product Introduction

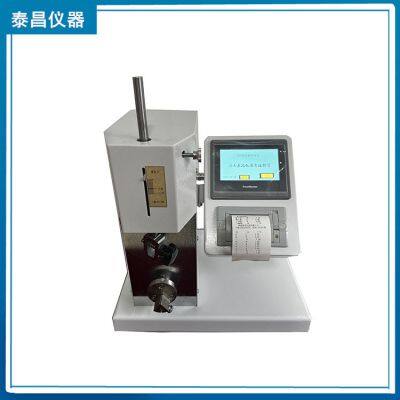

The TC-NZ135A MIT Folding Endurance Tester (also known as the Folding Endurance Tester, Paper Folding Endurance Tester, or Paperboard Folding Endurance Tester) is a specialized instrument for measuring the folding fatigue strength of paper, paperboard, and other sheet materials with a thickness of less than 1.25mm. The main technical indicators and performance parameters of the Paper Folding Endurance Tester comply with relevant national standards and regulations.

Product Features

1. The paper folding resistance tester is fully controlled by computer technology, with a high degree of automation, an open structure, simple and convenient operation, stable and reliable performance, and high accuracy.

2. Paper folding resistance tester with fully automatic testing and intelligent judgment function.

3. Statistics and printing of test results, with the function of saving test data.

4. Chinese graphic menu display interface, high-speed micro printer.

5. Integrated modern design concept of optical, mechanical and electrical components, compact structure, beautiful and elegant appearance, and easy maintenance

Meet standards

1. GB/T 2679.5 Determination of Flexural Endurance of Paper and Paperboard (MIT Flexometer Method)

2. GB/T 457 Determination of Folding Resistance of Paper and Paperboard

3. QB/T 1049 Paper and Paperboard Folding Endurance Tester

4. ISO 5626 Determination of Paper Wrinkle Resistance

Technical Parameter

1. Measurement range: 1 to 99999 times

2. Folding angle: 135 °± 2 °

3. Folding speed: 175 ± 10 times/minute

4. Tension adjustment range: 4.9N~14.7N

5. Folding head stitching specifications: 0.25mm, 0.50mm, 0.75mm, 1.00mm (the above four specifications are randomly equipped, the 1.25mm specification can be selected according to customer requirements, and other special specifications can be customized according to customer requirements)

6. Power supply: AC220V 50Hz

7. Dimensions: 305mm × 380mm × 420mm

8. Weight: Approximately 22kg
