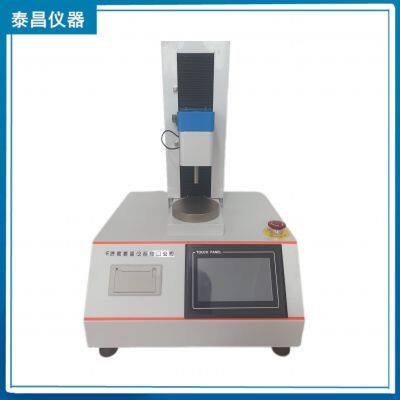

Tofu/bean curd jelly served with sauce elasticity tester ham/bean products puncture strength tester texture tester

Product Introduction

This texture analyzer has the advantages of strong stability, high accuracy, wide applicability, easy operation, and durability. It can be used for physical property research and teaching applications in research institutes and universities, as well as for raw material quality control, formula research, production process research, quality control, and product development in enterprises and factories.

Product Features

Equipped with a brand new 12th generation Intel Core processor, 8GB DDR4 memory, and 512GB high-speed SSD data storage. 6-core 8-thread 4.4GHz turbo frequency, 10MB cache. Super fast collection rate, synchronized video images, real-time curve depiction, and seamless access to massive data without any lag.

★ Equipped with advanced Wi Fi 6TM8 and Bluetooth 5.29, providing extended HDMI, 4 USB 3.0 ports, and an industrial 9-pin serial COM port. Provide as many and comprehensive peripheral interfaces as possible, with the aim of enabling your texture analyzer to easily achieve intelligent interconnection.

★ Expandable external large display screen or projection screen, convenient for video conferencing or teaching.

The compression instrument is embedded with a high-definition camera module, which can record the entire process of important sample tests and save them synchronously with the curves and data of the test to a traceable database.

★ Test replay: The software automatically records the entire process of the test (including synchronous camera) and provides intelligent retrieval through multiple methods. Traceable experiments from any period can be used for data restoration, curve drawing, and synchronous video playback to observe and analyze the experimental details of the queried samples.

The system can display three types of curves: force time, force distance, and distance time. The curve includes scaling, scalability, annotatable text or symbols, automatic color switching, and automatic calculation of relevant data points and selected field area.

Product Application

This product is widely used for texture analysis and physical property testing in the fields of food, agriculture, forestry, animal husbandry, aquatic products, cosmetics, daily chemical products, pharmaceuticals, tobacco, and materials

Technical Parameter

★ Force sensing element size: 20Kg (1, 2, 5, 10, 20, 25Kg, 50Kg can be selected)

★ Force sensing element accuracy: 0.015% FS

★ Power analysis accuracy: 0.001g

★ Displacement range: 0~320mm

★ Displacement analysis accuracy: 0.0001mm

★ Data collection rate: up to 4800 sets per second, optional after optimized filtering (200sps, 500sps, 1000sps, 2000sps, 3000 sps, 4000sps)

★ Movement speed: 0.01mm/s~40mm/s

★ Speed accuracy: ≤± 0.1%

★ Dimensions: Length 550mm * Width 320mm * Height 830mm 2.13 Weight: Approximately 29Kg
