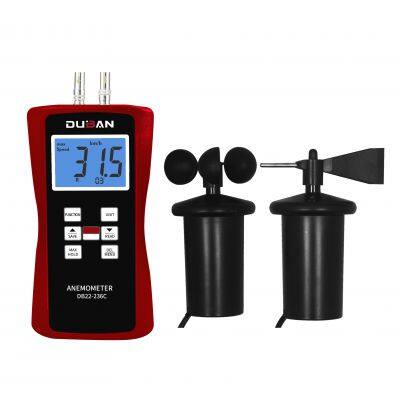

ANEMOMETER DB22-236C

FOB Price

Negotiable / Combo

1 Combo(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Trademark

DUBAN

Origin

CHINA

【Applications】
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
【Features】
* Multifunctional.the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design,convenient to measure.
* Wide applications: use to check air conditioning & heating systems , measure air velocities, wind speeds,temperature etc.
* Auto power shut off.
* Use USB data output and RS-232 data output with connection PC.
* Provide Bluetooth ? data output choice.

【Specifications】

Measurement unit	Air Flow:CMM(m3/min) CFM(ft3/min)
	Beaufort scale:Force
	Direction: °from the North direction
	Wave Height:m
	TEMP:℃&℉
Data hold	Maximum Value
Data memorized	24 groups
Sampling rate	reading per second approx
Sensors	Air velocity/flow sensor: 3-cup probe
	Direction probe: Low friction probe
	Temperature sensor: Precision thermistor
Automatic Power off	0-9 minutes set by users
Operating Temperature	-10℃ - 60℃(14℉ ~ 140℉)
Operating Humidity	Max. 80% RH
Power Supply	4x1.5AAA size
Dimensions	Main Unit：140x77x32mm
	3-cup probe：65x65x115mm
	Direction probe：86x69x115mm
Weight	310g，including probe

【Range Specifications 】
