Inform SS 210 On line UPS
Negotiable
/ Set
1 Set(Min.Order)
- 50000 Set / Sets per Month
- Hongkong
You May Like
Product Details
| Place of Origin | Turkey | Brand Name | Inform | |
| Model Number | SS 210 | Phase | Single Phase | |
| Protection | Other, Overload & short circuit protection | Weight | 15kgs | |
| Output Voltage | 220VAC / 230VAC | Type | On-line | |
| Application | Instrumentation |
Product Description
Specifications
1. Authorized Distributor in CHINA2. Smart RS-232 communication port
3. On-line Double Conversion technology
4. Power fa
| COMMUNICATION | |||
| Interface (Communication Port) | RS-232 | ||
| Monitoring and Management Software | standard | ||

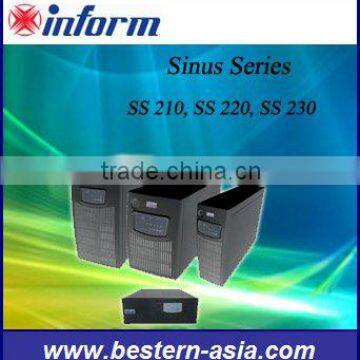

| SINUS SERIES Uninterruptible Power Systems On -Line “Double Conversion” Technology 1 phase in-1 phase out, 1kVA to 3kVA (Tower & Rack Models) |
| MODEL | SS 210 | SS 220 | SS 230 | |
| INPUT | ||||
| Power (kVA) | 1 | 2 | 3 | |
| Voltage | 160 - 280 VAC | |||
| Frequency | 50 / 60 Hz. ± 5 % | |||
| Power Factor | >0.98 | |||
| OUTPUT | ||||
| Output Power Factor | 0.7 | |||
| Voltage | 220VAC / 230VAC | |||
| Voltage Regulation | ±%2 | |||
| Frequency | 50 / 60 Hz (Auto Detection) | |||
| Frequency Regulation | ±0,5% | |||
| Harmonic Distortion | < 3 % (For Linaer Loads) | |||
| Crest Factor | 3:1 | |||
| Overload Capacity | 100% - 120% for 60 seconds, 120% - 150% for 10 seconds | |||
| Whole efficiency | >85% | |||
| Inverter efficiency | >90% | |||
| Transfer Time | 0ms | |||
| Outlets | 3pcs IEC & 1pc Schuko Outlets | 3pcs IEC & 2pcs Schuko Outlets | 6pcs IEC & 2pcs Schuko Outlets | |
| BATTERY | ||||
| Type | Maintenance-free lead acid batteries | |||
| Recharge Time Voltage | 8 hours (to 90% of full capacity) | |||
| 36VDC | 72VDC | 96VDC | ||
| Quantity | 3 pcs 12V 7ah | 6 pcs 12V 7ah | 8 pcs 12V 7ah | |
| Back Up Time Full Load | 8 min | 7 min | ||
| Half Load | 20 min | 15 min | ||
| DISPLAY | |||
| LED Display | line input, inverter, bypass, fault, overload, battery low, self-test, Load/Battery Level | ||
| ALARMS | |||
| Line Failure, Battery Low, Transfer To Bypass, Failure Events | |||
| PROTECTION | |||
| short circuit, over temperature, overload, high voltage, battery low | |||
| COMMUNICATION | |||
| Interface (Communication Port) | RS-232 | ||
| Monitoring and Management Software | standard | ||
| Tower Type | |||
| Net Weight(kg) | 15 | 29 | 35 |
| Dimensions (mm) WxHxD | 147x401x223 | 130x475x360 | 190x450x360 |
