FRP Vessel Tank Filament Winding Production Line
- Tianjin Qinddao. Or by clients' requirement
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
FRP Vessel Tank Filament Winding Machine / Vessel Making Machine
-
FRP Plane Skylight Production Line
-
Chinese Professional Factory Atuomatic Manhole Cover Making Machine
-
GRP Tank Vessel Filament Winding Machine
-
Fiberglass Tank Vessel Filament Winding/Tank Making Machinery
-
FRP/GRP Hydraulic Pultrusion Machine
Product Details
| Place of Origin | Hebei, China | Brand Name | SWJY | |
| Model Number | FW | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

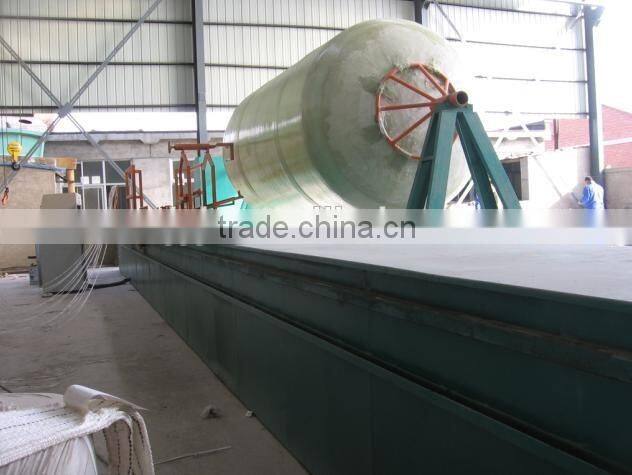

FRP Vessel Tank Filament Winding Production Line :
This is special equipment that can produce small-size FRP pipes and tanks, it has been matched the mould-unloading machine and forming set, its main properties are below:
1. The maxi diameter can be wound: DN1500mm
2. The maxi length can be wound: 6000mm
3. The range of diameter: DN25~DN1500mm
4. The winding angle: 45°-90°
5. The total power:5.5kw
6. The maxi width of roving sheet:150mm.
7. The productivity:450kg/h

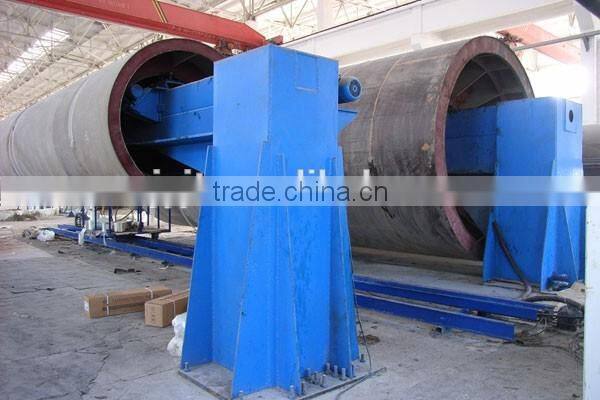

Horizontal Winding Machine of FRP Tanks | |||
Equipment No Item Name | FWWS-2500 | FWWS-4000 | FWWS-10000 |
Tank diameter,IDmm | Φ500-Φ2500 | Φ800-Φ4000 | Φ4000-Φ10000 |
Product length,mm | ≤12000 | ≤12000 | ≤12000 |
Winding angle | 45 º90 º | 45 º90 º | 45 º90 º |
Max weight of product ,kg | 8500 | 12000 | 28000 |
Rotating speed of main shaft ,r/min | ≤45 | ≤35 | ≤18 |
Transmission method | Pinion and rack | Pinion and rack | Pinion and rack |
Control method | manualsemi automaticautomatic | manualsemi automaticautomatic | manualsemi automaticautomatic |
Coordinate speed of vehicle ,m/min | 45 | 45 | 45 |
Precision of lining up yarn ,mm | ±1 | ±1 | ±1 |
Repositioning accuracy ,mm | 0.2 | 0.2 | 0.2 |
Max speed of pulling yarn ,m/min | 90 | 90 | 90 |
Max width of yarn tape ,mm | 200 | 200 | 200 |
Winding type | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction | Reciprocating cross, hoop direction |
Winding roving capacity,each | 60 | 60 | 80 |
Resin type | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. | Unsaturated polyester, vinyl ester, etc. |
Yarn framea kind of inner pulling yarn | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type | Tension adjustable yarn frame of mechanical type |
Impregnation groove,stainless steel | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation | Roller impregnation or immersion impregnation |
Production capacity ,kg/h | 800 | 1200 | 2000 |
Total installed capacity , kw | 10.5 | 12.5 | 18.5 |
Areas covered by production linelength × width × heightm | 18×9×2.5 | 18×9×3 | 20×15×7 |
1, OEM
2, We teach you how to install and operate the machine
3, Train your staffs for free
4, Warrantee time for 12 months
Q: Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q:Have you some videos where we can see the line producing?
A: Yes, we can provide some videos
Any enquiry please feel free contact us.
