FRP Pultrusion Machine
- XINGANG TIANJIN
 - T/T Credit Card PayPal

You May Like
-


FRP Pultrusion Equipment Machine Fiberglass Pipes FRP Grating Machine
 -


China FRP Pultrusion Equipment Machine Fiberglass Pipes FRP Grating Machine for Sale
 -


FRP Pultrusion Equipment Machine Fiberglass Pipes FRP Grating Machine
 -


HOTSALE!FRP Pultrusion Equipment Machine Fiberglass Plastic Pipes FRP Grating Machine
 -


Pultrusion Machine
 -


High Quality Pultrusion Machine

Product Details
| Place of Origin | Hebei, China | Brand Name | SWJY | |
| Model Number | SWJY-PM | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ProductInstruction

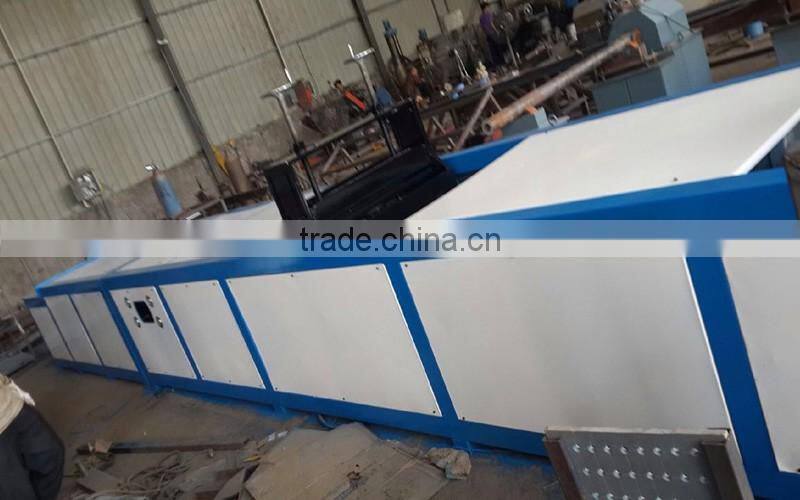

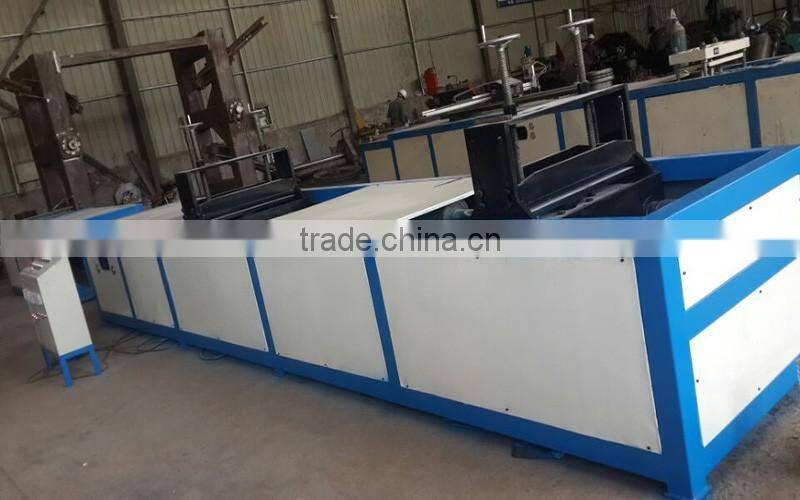

FRP profile pultrusion machine
The main characteristic of FRP hydraulic pultrusion line:
1. The whole production line occupy 20-30M at length, 3 meter at width, about 60-100 square meter. The machine is designed according to the big section profile, with the features of strong traction force; it is steadily to operate;
2, the main machine is steel structure, stainless steel panel, side panel is paint. With the two kinds of pultrusion modes: Debugging and succession, it is convenience to adjust the production craft;
3. Traction gantry makes ordered according to requested length.
4. The machine had two hydraulic pressure system, it had strong ability of anti-interference;
Hydraulic station: we used the latest technology: pump is multi-group pump source (to ensure stability in forward speed.) Hydraulic parts are made of stacked clip (easy maintenance), and the tension and clamping force can make stepless adjustment. Traction speed with precision throttle, to ensure the stability of traction speed, and stepless speed adjustment of the traction. Hydraulic station with switch, so as to control the hydraulic oil heating up and down, so as to ensure the normal operation of the hydraulic system
4. provides the powerful force chiller; the machine can realize 24 hours revolutions easily;
5,Using function: it have single and double manually operated gantry and double gantry automatic reciprocating running function. Automatic intermittent time can be automatically settled, and the actual production tension can be feedback by sensor
Technology Parameters
Model  | LHRC-4.5  | LHRC-8  | LHRC-12  | LHRC-15  | LHRC -20  | LHRC -25  |
Pulling force (Ton)  | 4.5  | 8  | 12  | 15  | 20  | 25  |
Pulling speed(m/min)  | 0.1-2.0  | 0.1-1.5  | 0.1-1.5  | 0.1-1.5  | 0.1-1.2  | 0.05-1.5  |
Profile(W×H)m  | 0.45×0.13  | 0.5×0.2  | 0.5×0.3  | 0.8×0.35  | 0.85×0.35  | 1×0.5  |
Motor Power(Kw)  | 6  | 8  | 11  | 15  | 15  | 22  |
Heating Power(Kw)  | 9.6  | 9.6  | 12  | 18  | 18  | 18  |
Dimension(L×W)m  | 8.25×0.85  | 7.5×0.9  | 7.5×0.9  | 11×1.12  | 11*1.15  | 13×1.5  |
Weight(Ton)  | 2.5  | 3  | 3.5  | 4  | 12  | 5  |
Driving Type  | Hydraulic  | |||||
Control system  | Relay & PLC & Touch screen  | |||||

We use standard exporting packages, including wood blocks and ropes to fix the machine in the container to prevent any damage during the transportation.

Before-sale services:
(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
In-Sale services:
(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
After-sale services:
(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers installation video to teach them how to fix and operate with our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation. within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with the customer's two-way communication.

Q: Are you a trading company or a manufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q:Have you some videos where we can see the line producing?
A: Yes, we can provide some videos
