WP Series Water Cooling Air Cooling Marine Air Compressor

FOB Price

USD $500 - $5,500 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port Shanghai Qingdao and other ports
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	Hi-sea
Model Number	Client's requirements		Part	Other, Marine air compressor

Product Description

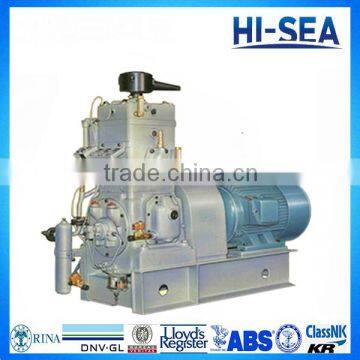

WP Series Water Cooling Air Cooling Marine Air Compressor

WP series marine air compressor has perfect automatic control and protection system,like automatic open and stop,automatic discharge,oil pressure protection,hydraulic protection,cooling water temperature protection,cooling water intake water control,etc.It can realize unmanned operation.Our marine air compressor is mainly suitable for shipping industry.

Specifications of WP Series of Marine Air Compressor(50HZ,380V):

Model	Capacity (m3/h)	Discharge pressure (MPa)	Motor		Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
Model	Capacity (m3/h)	Discharge pressure (MPa)	Power(kw)	Voltage(V)	Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
WP18L	18	3.0	5.5	380	Direct coupling	Air cooling	845×640×564	66
WP25L	24.5	3.0	7.5	380	Direct coupling	Air cooling	870×640×632	67
WP32L	31.5	3.0	7.5	380	Direct coupling	Air cooling	884×640×632	67
WP250L	225	3.0	55	380	Direct coupling	Air cooling	1617×930×1085	924
WP60	84	3.0	18.5	380	Direct coupling	Water cooling	1322×671×1051	650
WP80L	80	3.0	15	380	Direct coupling	Air cooling	1310×780×830	330
WP100L	99	3.0	20	380	Direct coupling	Air cooling	1362×880×1007	450
WP110	91	3.0	22	380	Direct coupling	Water cooling	1425×845×1370	970
WP135	118	3.0	30	380	Direct coupling	Water cooling	1465×840×1370	1000
WP160	141	3.0	30	380	Direct coupling	Water cooling	1520×920×1420	1010
WP185	162	3.0	37	380	Direct coupling	Water cooling	1520×920×1420	1000
WP220	191	3.0	45	380	Direct coupling	Water cooling	1975×951×1639	1400
WP270	248	3.0	55	380	Direct coupling	Water cooling	1975×850×1568	1400
WP320	294	3.0	63	380	Direct coupling	Water cooling	1975×951×1568	1400
WP370	344	3.0	75	380	Direct coupling	Water cooling	2120×985×1598	1400
1-0.433/60	26	6.0	11	380	Belt Rotation	Water cooling	1170×700×1220	670
CZ-60/30	60	3.0	18.5	380	Direct coupling	Water cooling	1500×535×1200	900

Specifications of WP Series Marine Air Compressor(60HZ,440V):

Model	Capacity (m3/h)	Discharge pressure (MPa)	Motor		Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
Model	Capacity (m3/h)	Discharge pressure (MPa)	Power(kw)	Voltage(V)	Mode of transmission	Mode of cooling	Dimension (LWH)mm	Weight(kg)
WP18L	14.3	3.0	5.5	440	Direct coupling	Air cooling	845×640×564	66
WP25L	20.0	3.0	7.5	440	Direct coupling	Air cooling	870×640×632	67
WP32L	25.0	3.0	7.5	440	Direct coupling	Air cooling	884×640×632	67
WP250L	180	3.0	55	440	Direct coupling	Air cooling	1617×930×1085	924
WP60	68	3.0	18.5	440	Direct coupling	Water cooling	1282×671×1051	650
WP110	110	3.0	30	440	Direct coupling	Water cooling	1425×725×1458	970
WP135	142	3.0	30	440	Direct coupling	Water cooling	1465×725×1458	1000
WP160	170	3.0	37	440	Direct coupling	Water cooling	1465×840×1458	1100
WP185	195	3.0	45	440	Direct coupling	Water cooling	1465×840×1458	1100
WP220	230	3.0	55	440	Direct coupling	Water cooling	1975×910×1639	1400
WP270	300	3.0	63	440	Direct coupling	Water cooling	1975×910×1638	1400

(Note:The specifications of marine air compressor can be customized according to clients' requirements.)
