Marine Open-type Compressed Condensing Unit
- Chongqing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-sea | |
| Model Number | HS-CLNK | Type | Air Conditioning |
Product Description
Specifications
Condensing Unit:1.Certificate:ISO,CE.
2.Material:Aluminum.
3.Timely ship,Competitive price.
4.One year warranty.
Condensing Unit:

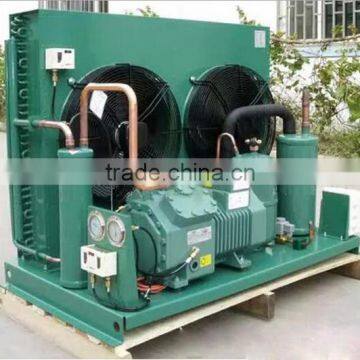

Marine Open-type Compressed Condensing Unit
Application:
Marine open type compressed condensing unit are to provide refrigerant liquid for conditioning system direct and device.The unit has the features of new-design,easy-operation,stable working,safety and convienent-maintaining etc.They are widely used for all kinds of passenger ship,cargo ship,oil platform,etc.
Features:
1.It is mainly composed of compressor,condenser and control box etc.
2.Open-type piston compressor is used so that plant is easy maintenance.
3.Pressure test,Vacuum test and running test have been done before leaving factory.
4.Design and manufacture special specification of this series of product as per user’s requirement.
Main technical parameters:
Model | CLN-70K | CLN-105K | CLN-175K | CLN-244K | CLN-348K | ||
Cooling capacity | KW | 70 | 105 | 175 | 244 | 348 | |
Cooling medium | R22(R134a,R404A,R407C) | ||||||
| Main circuit | AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz | |||||
Control circuit | AC220V 1Φ 50Hz/ AC220V 1Φ 60Hz | ||||||
| High pressure,Low pressure,Oil pressure,Water stop,Lack phase,Overload and safety valve | ||||||
| Type | pen-type single-stage piston compressor | |||||
energy reulation | 0,33,66,100(%)/0,25,50,75,100(%) | ||||||
Drive | V-strap | ||||||
| output power | 19 | 30 | 45 | 75 | 90 | |
Stage | 4 | ||||||
Type | Hermetic air cooled basic mounted | ||||||
| IP56 | ||||||
Start method | Y-Direct | ||||||
| Type | horizontal shell&tube | |||||
Water flow | m³/h | 22 | 35 | 48 | 65 | 100 | |
Water pressure loss |
Kpa | 30 | 45 | 55 | 60 | 70 | |
| Cooling water | DN | 65 | 65 | 80 | 80 | 125 |
Cooling medium air pipe | inch | 1-5/8” | 2-1/8” | 3-1/8” | 4-1/8” | 5-1/8” | |
Cooling meidum liquid pipe | inch | 7/8” | 7/8” | 1-5/8” | 2-1/8” | 2-1/8” | |
ondenser safety valve outlet |
|
|
|
|
|
| |
weight | Kg | 600 | 900 | 1300 | 1750 | 2000 | |
Dimentions:
Model | CLN-70K | CLN-105K | CLN-175K | CLN-244K | CLN-348K |
L | 1540 | 2150 | 2150 | 2150 | 2740 |
W | 860 | 860 | 990 | 1075 | 1180 |
H | 1290 | 1290 | 2070 | 1855 | 1750 |

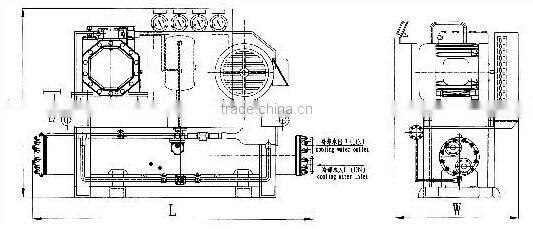

Drawing:
