Home > Products > Marine Auxiliary Machinery > HVAC Electrical Flat Fire Damper

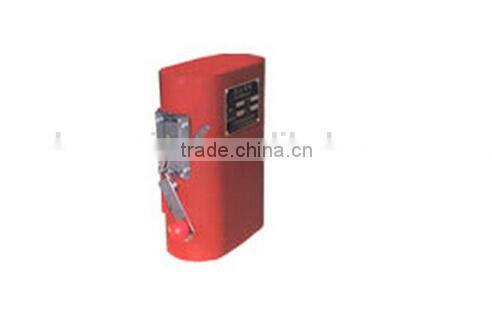

HVAC Electrical Flat Fire Damper
- Chongqing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-sea | |
| Model Number | HS-FFD | Type | HVAC Systems |
Product Description
Specifications
Flat fire damper:1.Certificate:ISO,CE.
2.Material:stainless steel.
3.Quik ship,High quality.
4.Service:One year warranty.
Flat fire damper:
HVAC electrical flat fire damper
Application:
The shape of fire damper is flat and the construction is made of body,shaft,valve disc.,The material is stainless steel and can be painted as your comments,The model of fire damper is widely used in air conditioning system or ventialtion system in marine or other buildings to prevent fire and smoke.
The flat fire damper can be controled by temperature,It can be electircal automatically closed,Fire damper is open in a normal condition,If the temperature of air within duct exceeds 70 °C,The fusible link of fire damper will be broken to close the fire damper.
The time for refractory is 1.5h,The electrical singal could be output according to user‘s requirement,Fire damper should be reset manually.
Feature:
1.Stainless steel construction to prevent fire and damper.
2.The time for refractory is 1.5h.
3.The coefficiant of resistance is less than 0.4.
4.The damper will be automatically close when the temperature is 70 °C
5.The height of body is 210mm.
6.Speical size could be supplied.
Available size:
|
| Internal dia.DN | Thickness | Height | |
a | b | ||||
125 | 150 | 90 | 184 | 5 | 250 |
160 | 190 | 115 | 233 | 5 | 250 |
175 | 215 | 125 | 266 | 5 | 250 |
200 | 250 | 140 | 312 | 5 | 250 |
230 | 250 | 150 | 307 | 5 | 260 |
240 | 275 | 150 | 346 | 5 | 285 |
345 | 400 | 200 | 514 | 5 | 410 |
370 | 450 | 200 | 593 | 6 | 460 |
430 | 500 | 250 | 643 | 6 | 510 |
485 | 560 | 300 | 708 | 6 | 570 |
545 | 630 | 350 | 790 | 6 | 640 |

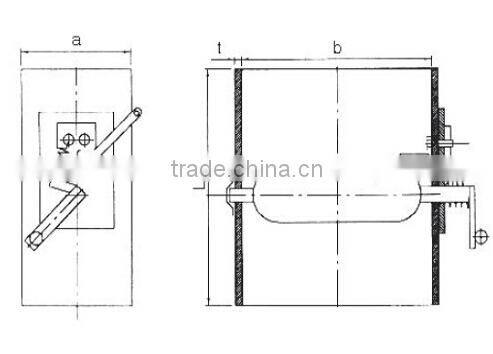

Drawing:
More details:
