Marine Indirect Evaporative Cooling Air Conditioner
- 50000 Piece / Pieces per Month
- Chongqing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-sea | |
| Model Number | HS-IEAC | Type | Air Conditioning |
Product Description
Specifications
Evaporative Cooling Air conditioner:1.Certificate:ISO,CE
2.Material:Stainless
3.Timely ship,Lower price
4.One year warranty
Evaporative Cooling Air Conditioner :

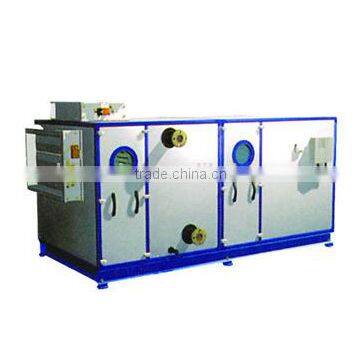

Marine Indirect Evaporative Cooling Air Conditioner
Application:
CAW marine air conditioner is one of the air conditioning systems that shall be used together with water chilling unit,It is featured by compact structure,Low vibration,Low noise and easy installation.
CAW marine air conditioner mainly consist of air filter,air heater exchanger,fan,motor and electircal control cabinet,etc.In addition,flow control valve station can be provided in full sets according to the requirement of user.
Installation:
1.When hoisting the air conditioner,pay attention not to damage and deform the body.
2.The air conditioner shall be installed on the base and see air conditioner overall dimension drawing for the dimension of bolt hole on the base.Cusion pad shall be installed between the equipment pedestal and the base,ans space for inspection around the equipment shall be reserved,In order to remove the filter screen for clean,The operation for side shall be more than 500mm.
3.Connect the inlet and the outlet pipes of the chilled(heated)water or steam to the corresponding pipelines of air conditioner.
4.The drain pipe connected from refrigeneration condenser tube of air conditioner shall have water seal not less than 100mm.
5.All the chilled(heated)water pipes shall contain 30mm thick antiflaming insulation layer,and shall be bound with white cloth.
Main techenical parameters:
Type | CAW-186 | CAW-210 | CAW-232 | CAW-250 | CAW-291 |
Cooling Capacity | 186 | 210 | 232 | 250 | 291 |
Heating Capacity | 215 | 232 | 250 | 291 | 335 |
Regenerating medium | 7°C Cooling fresh water | ||||
Heating medium | ≥45°C Heating Fresh Water/0.3~0.4Mpa Steam | ||||
Heating steam consumption | 370 | 400 | 430 | 500 | 580 |
Humidifying steam consumption | 64 | 68 | 80 | 88 | 95 |
Air flow m ³/h | 16000 | 18000 | 20000 | 22000 | 25000 |
Fan motor power | 30 | 37 | 37 | 45 | 45 |
Exteral static pressure | 1800 | 1800 | 1800 | 1900 | 1900 |
cooling(heating) water flow m ³/h | 32 | 38 | 40 | 43 | 50 |
Cooling water press.Drop | 100 | 110 | 120 | 130 | 140 |
Power | AC380V3Ph50Hz/AC440V3Ph60Hz | ||||
weight | ~2500 | ~2700 | ~2900 | ~3100 | ~3200 |
Dimensions:
Type | L | W | H | n1XL1 | L2 | n3XB1 | B2 | n 2-φ1 | n 4-φ2 | AXB | AXC | DN |
CAW-186 | 3200 | 1900 | 1900 | 5X628 | 60 | 4X435 | 1800 | 16-φ150 | 18-φ20 | 450X700 | 450X700 | DN100 |
CAW-210 | 3300 | 2100 | 1950 | 5X648 | 60 | 4X485 | 2000 | 19-φ150 | 18-φ22 | 450X800 | 450X800 | DN100 |
CAW-232 | 3500 | 2100 | 2170 | 5X688 | 60 | 4X485 | 2000 | 20-φ150 | 18-φ22 | 500X800 | 500X800 | DN125 |
CAW-250 | 3600 | 2200 | 2270 | 5X708 | 60 | 4X510 | 2100 | 21-φ150 | 18-φ24 | 550X850 | 550X850 | DN125 |
CAW-291 | 3800 | 2200 | 2370 | 5X748 | 60 | 4X510 | 2100 | 25-φ150 | 18-φ24 | 550X850 | 550X850 | DN125 |
Drawing:
