Marine Compressed Condensing Unit
- Chongqing
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | Hi-sea | |
| Model Number | HS-CLN | Type | Air Conditioning |
Product Description
Specifications
Condensing Unit:1.Certificate:ISO,CE.
2.Material:Aluminum.
3.Timely ship,Competitive price.
4.Service:One year warranty.
Condensing Unit:

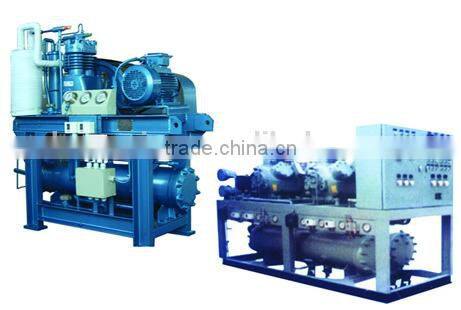

Marine Compressed Condensing Unit
Application:
Marine condensing unit are to provide refrigerant liquid for direct end device of air conditioning system,The unit has features of new-design,easy-operation,stable-working,safety and convinient-maintaining etc.They are widely applied for all kinds of passenger ships and oil platforms etc.
Features:
1.mainly composed by compressor,condenser and control box,etc.
2.Pressure test,vacuum test and running test have been done before delivery.
3.Match with proper direct end device to form an integral system.
4.Special design and manufacture can be done upon user‘s requirement.
Main technial parameters:
Model | CLN-23 | CLN-35 | CLN-46 | CLN-58 | CLN-70 | CLN-82 | |||
Cooling capacity | KW | 23 | 35 | 46 | 58 | 70 | 82 | ||
Cooling medium | R22(R134a,R404A,R407C) | ||||||||
| Main circuit | AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz | |||||||
Control circuit | AC220V 1Φ 50Hz/ AC220V 1Φ 60Hz | ||||||||
protection device | High pressure,Low pressure,Oil pressure,Water stop,Lack phase,Overload and safety valve | ||||||||
| Type | Hermetic or semi-hermetic compressor | |||||||
energy reulation | % | / | 0,50,100(0,66,100) | ||||||
Motor Power | kw | 6 | 9 | 11 | 16 | 19 | 22 | ||
| Type | horizontal shell&tube | |||||||
Water inlet temp | °C | ≤36 | |||||||
Water flow | m³/h | 7 | 10 | 13.5 | 17 | 20 | 23 | ||
Water pressure loss |
|
|
| ||||||
Weight | Kg | 680 | 900 | 100 | 1000 | 1100 | 1200 | ||
Dimensions:
Model | L | W | H | L1 | DN1 | DN2 | DN3 |
CLN-23 | 1250 | 700 | 1450 | 820 | DN32 | DN25 | DN13 |
CLN-35 | 1550 | 700 | 1450 | 950 | DN40 | DN32 | DN13 |
CLN-46 | 1550 | 750 | 1500 | 980 | DN50 | DN40 | DN16 |
CLN-58 | 1880 | 750 | 1500 | 1100 | DN50 | DN40 | DN19 |
CLN-70 | 1800 | 750 | 1500 | 1250 | DN50 | DN50 | DN19 |
CLN-82 | 1850 | 850 | 1600 | 1100 | DN65 | DN50 | DN19 |
CLN-93 | 1850 | 850 | 1600 | 1100 | DN65 | DN50 | DN19 |
CLN-105 | 1850 | 850 | 1600 | 1100 | DN65 | DN50 | DN19 |
CLN-116 | 1850 | 850 | 1750 | 1100 | DN65 | DN50 | DN19 |
CLN-140 | 1850 | 900 | 1750 | 1350 | DN80 | DN50 | DN19 |

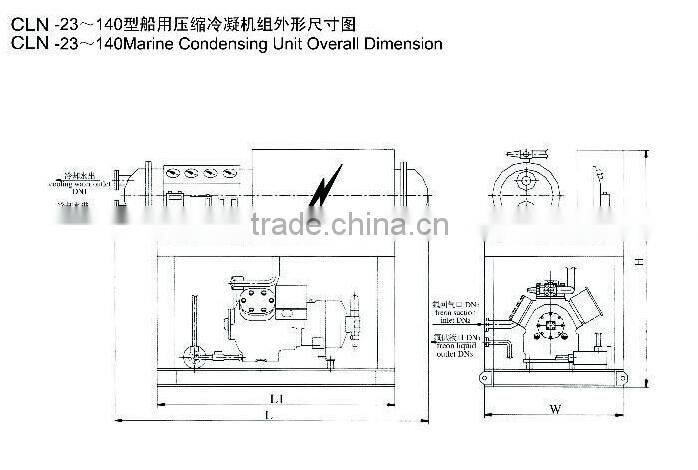

Drawing:
