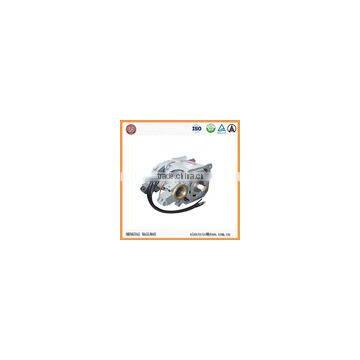

ZD126 D.C. Traction Motor for railway locomotive
- Any port in China
- T/T Credit Card PayPal
You May Like
Product Details
| Model Number | ZD126 |
Product Description
ZD126 D.C. Traction Motor for railway locomotive
Application:
ZD126 D.C. Traction Motor is one type of the max power put in narrowgaged Diesel Locomotive. Main characters: wide rage of adjusting speed with constant power, good commutation and good generality. The frame is provided with welded steel plate and hugging bearing structure; Armature winding cross and lie flat,;Use Kapton insulation film on armature; Use NOMEX insulation paper to insulate to the earth; Bind unidirectional weft less gage on the front end of the slot, bind nomagnetic coated tin wire on the back end; brush hand is reaction type, brush hand spring is spiral. Motor use good insulation materials, rotor and stator use vacuum pressure dip coating . The motor is mainly used on narrow-gaged locomotives
Technical parameter:
Rated Power | 310KW |
Rated Voltage | 500V |
Rated Current | 680A |
Rated efficiency | 91.5% |
Rated Speed | 755r/min |
Max speed | 3100r/min |
Rated air flow | 80m3/min |
Max voltage | 1200V |
Max current | 1000A |
Cooling method | Forced external |
Weight | 1640kg |
