Air Conditioning Unit for Railway
Negotiable
/ Unit
1 Unit(Min. Order)
- Any Port in China
- T/T
You May Like
-
The Air Conditioning Unit for Metro
-
The Train Passenger Compartment Air Conditioning Unit With Cooling Capacity 37KW
-
The Light Rail Passenger Compartment Top Air Conditioning Unit
-
HVAC System Used to Railway
-
Top-Of-Rack Type Air Conditioning Unit for Passenger
-
The Train Passenger Compartment Top Air Conditioning Unit
Product Details
| Type | Other, electric | Material | steel | |
| Dimensions (L x W x H) (mm) | 3760*1800*475 | Model Number | HT-K42 |
Product Description
Air conditioning unit for railway :
Rail transportation as one of the main tools of the city, need to provide passengers convenient, comfortable, safe and reliable driving environment, Products with reliable and good cooling performance, can also according to customer needs to customize some additional function . E.G.:According to passenger load automatically adjust the fresh air volume, condensed water recovery, air purification, large capacity, dust collection system, air conditioning energy consumption record.
Technical parameter:
| structure | roof-mounted air conditioning unit |

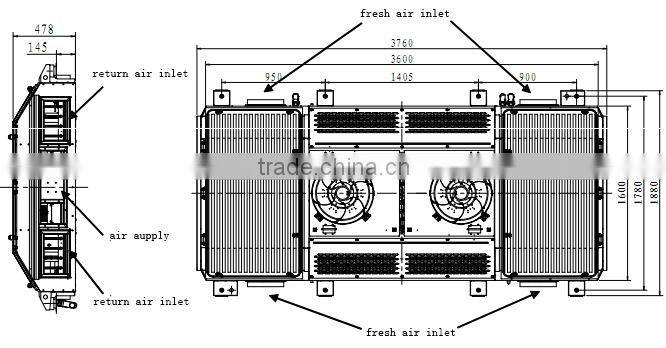

| dimension | 3760L*1800W*475H |
| cooling capactiry | 42KW |
| air capacity | supply:5500m3/h fresh:1600m3/h |
| related power | 17 |
| design environment | 35℃ DB out, 29.6℃ DB in, 60% RH |
| temperature | 50℃ |
| Power | main:3/380V AC/50Hz, control:DC110V |
| Compressor number | 4 |
| Weight | 930kg |
| material of the housing | steel |
| standard of Shock and Vibration | IEC61373:1999 |
| refrigerating fluid | R407C |
