The Light Rail Passenger Compartment Top Air Conditioning Unit
Negotiable
/ Unit
1 Unit(Min. Order)
- Any Port in China
- T/T
You May Like
-
HVAC System Used to Railway
-
Top-Of-Rack Type Air Conditioning Unit for Passenger
-
The Train Passenger Compartment Top Air Conditioning Unit
-
Three-phase Power Electric Connection Device of Railway Rolling Stock Side
-
8262323 Bolt for Hand Hole Cover Assy (EMS 82)
-
JF220 Brushless Synchronous Traction Generator
Product Details
| Type | Other, electric | Material | steel | |
| Dimensions (L x W x H) (mm) | 3300*1600*308 | Model Number | HT-C35 |
Product Description

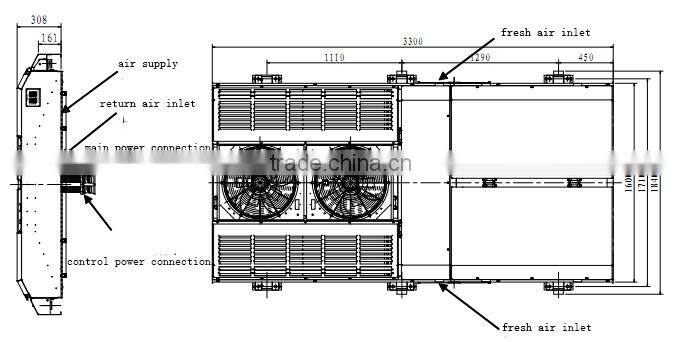

The light rail passenger compartment top air conditioning unit :
Rail transportation as one of the main tools of the city, need to provide passengers convenient, comfortable, safe and reliable driving environment, Products with reliable and good cooling performance, can also according to customer needs to customize some additional function . E.G.:According to passenger load automatically adjust the fresh air volume, condensed water recovery, air purification, large capacity, dust collection system, air conditioning energy consumption record.
Technical parameter:
| structure | roof-mounted air conditioning unit |
| dimension | 3300L*1600W*308H |
| cooling capactiry | 35KW |
| air capacity | supply:4000m3/h fresh:1270m3/h |
| related power | 17 |
| design environment | 35℃ DB out, 3℃ DB in, 60% RH |
| temperature | 45℃ |
| Power | main:3/380V AC/50Hz, control:DC24V |
| Compressor number | 2 |
| Weight | 590kg |
| material of the housing | aluminium alloy |
| standard of Shock and Vibration | IEC61373:1999 |
| EMC/EMI standard | EN50121-3-2:2000 |
| refrigerating fluid | R407C |
