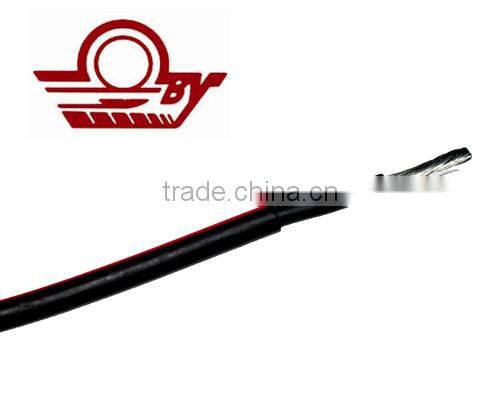

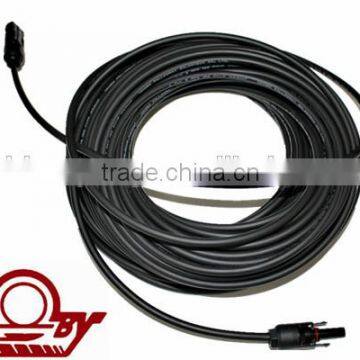

UL Approved UL 4703 Solar PV Cable 12awg

1.1 Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5

1.2 Insulation:Flame retardant PE,electron beam cross-linked, Colours: black

1.3 Outer jacket: Flame retardant PE,electron beam cross-linked

                            resistance against water , UV resistant , Jacket colour  black,red

2.Temperature range

2.1 Max,temperature at conductor              -40°C up to +120°C

2.2Temperature range                                -40°C up to +90°C(min.25 years)

3.Electrical characteristics

3.1 Nominal AC voltage                       600V

3.2 AC-test-voltage                            3.0KV(14AWG~10AWG)

                                                           3.5KV(≥8AWG)

3.3 Insulation-Resistance at 15.6°C 14AWG≥1165 MΩ/km

                                                           12AWG≥1000 MΩ/km

                                                           10AWG≥843 MΩ/km

                                                           8AWG ≥793 MΩ/km

4.Environmental characteristics

4.1 Sunlight-Resistance                        according clause 30 of UL 854

4.2 Vertical flame FT1                           according clause 1100 of UL 1581
