Home > Products > UL 4703 CERTIFIED PV WIRE > XLPE Single Core Cable UL PV Cable 10AWG Black for Solar System

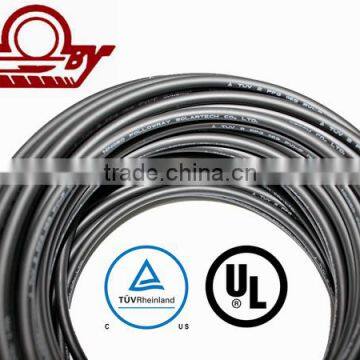

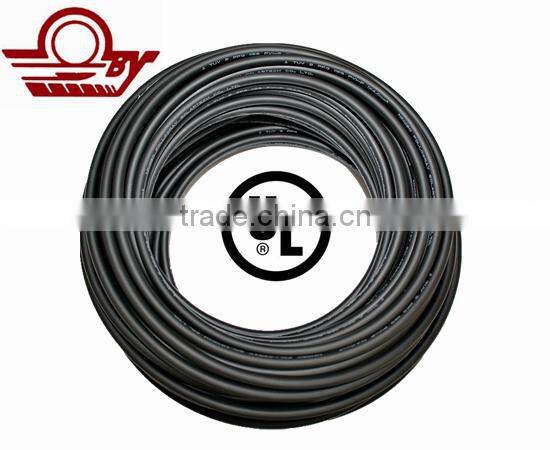

XLPE Single Core Cable UL PV Cable 10AWG Black for Solar System
- Ningbo China
You May Like
-
UL XLPE CABLE Electrical Wiring 12AWG Black Solar
-
UL Flat CABLE PV Wire 10AWG for Solar Energy
-
UL Flat CABLE pv Wire 8AWG Black for Soalr Power System
-
UL Flat Cable 14AWG Black Xlpe Power Cable for Solar System
-
14awg UL Flat Cable for Solar Power System
-
UL 854/ UL 4703 Approved 10awg Solar pv Cable for Solar Power System
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Benyang | |
| Model Number | UL 10awg | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Other, Solar System and Power Station | |
| Conductor Material | Other, Tinned Copper | Jacket | Other, XLPE |
Product Description

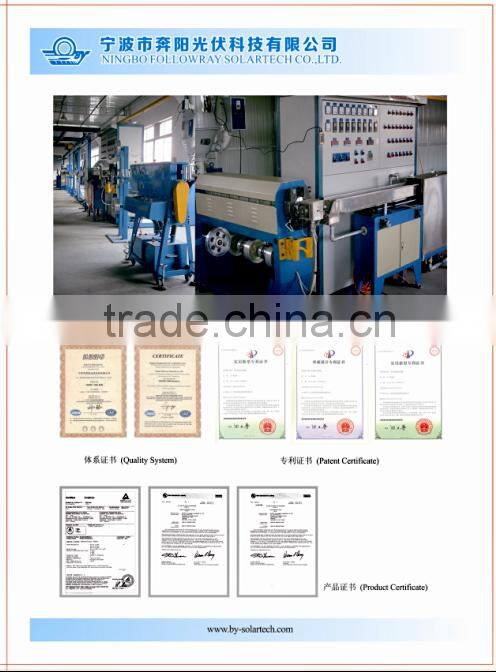

NINGBO FOLLOWRAY SOLARTECH CO.,LTD founded in 2000, which is located in FengHua City ZheJiang Province. It is a Integrated company, which engaged in production, R&D, sales and service for PV wires cables.
FOLLOWRAY SOLARTECH not only dedicates ourself into development, manufacture and application for Green Energy System--solar PV, but also concertrates on creating good quality and competitive products for customer.
Our product gets the certificate of UL/TUV, and all the wires and cables meets the demand of UL 4703, UL854 and TUV 2PfG 1169 08.2007.

1.Application
FOLLOWRAY SOLAR CABLE used for interconnection wiring of grounded and ungrounded photovoltaic power systems
2.Cable design
1.Conductor: fine wire strands of tinned copper wires,according IEC 60228,Class 5
2.Insulation: halogen free PE,electron beam cross-linked
3.Outer jacket: halogen free and flame retardant PE,electron beam cross-linked
resistance against water , UV resistant
3.Temperature range
Max,temperature at conductor -40°C up to +120°C
Temperature range -40°C up to +90°C(min.25 years)
4.Electrical characteristics
Nominal voltage AC 600/1000V,DC 900/1500V
AC-test-voltage 6.5KV
5.Marking
(UL) E326179 PV WIRE 14~6AWG 90°C WET OR DRY 600V SUN RES -40°C NINGBO FOLLOWRAY SOLARTECH CO . , LTD.
6.Industry Standards
TUV 2Pfg 1169/08.2007
Packaging: Carton/ Pallet
Shipping: Within 15 days

1. Response within 12 hours
2. Strict quality control system.
3. Faster lead time than our competitors.
4. Excellent quality with reasonable price.
5. Strong technical support (technical data, drawing, etc.)
6. Cable solutions to your particular requirements.
7. Free sample is available with economic express fee.
8. 12 months quality guarantee after delivery.
